Retrofit, M cover, entrance for BMW 3 Series F30 325d (2014)

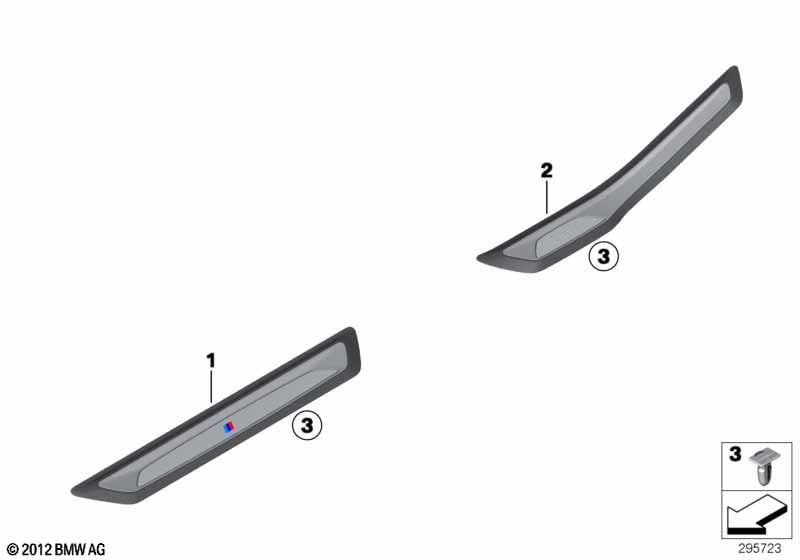

This Retrofit, M cover, entrance technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | M Trim panel for sill cover, front | M | 2 | 51478051037 | Shop at ECS Tuning | |||||
| 02 | M trim piece, rear left entry | 1 | 51478054233 | Shop at ECS Tuning | ||||||
| 02 | M trim piece, rear right entry | 1 | 51478054234 | Shop at ECS Tuning | ||||||
| 03 | Clip Natur | L=13,2MM | 4 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Clip, yellow | L=11,2MM | 16 | 51478244458 | $0.35 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 325d Retrofit, M cover, entrance?
- This technical diagram illustrates the Retrofit, M cover, entrance within the Retrofitting / conversion / accessories group for the 3 Series F30 325d produced during 2014. It provides a detailed exploded view of the components, identifying key parts such as the M Trim panel for sill cover, front (Part #51478051037).
- Which models use the hardware listed in this Retrofit, M cover, entrance?
- The hardware and components featured in the Retrofit, M cover, entrance are specific to the 3 Series F30 325d produced during 2014. These technical specifications ensure that parts like the M Trim panel for sill cover, front (51478051037) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, M cover, entrance assembly?
- Each item in the Retrofit, M cover, entrance corresponds to the numbered list below the illustration. For the 3 Series F30 325d, you can identify the M Trim panel for sill cover, front by locating its position on the schematic, which then links to the official BMW part number 51478051037 for the Retrofitting / conversion / accessories section.
