Retrofit, M cover, entrance for BMW 3 Series E46 320d (2001)

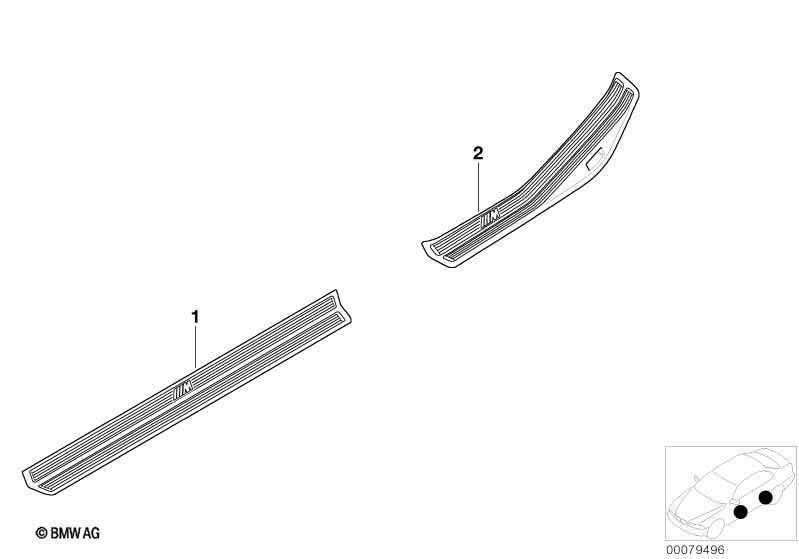

This Retrofit, M cover, entrance technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 0.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Front entrance cover | M | 2 | 51477894857 | $94.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Clip Natur | L=13,2MM | 8 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 02 | Rear left entrance cover | M | 1 | 51477891987 | $127.95 | Shop at ECS Tuning | ||||
| 02 | Rear right entrance cover | M | 1 | 51477891988 | $127.95 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
