Retrofit, M cover, entrance for BMW 5 Series E60 525i (2007)

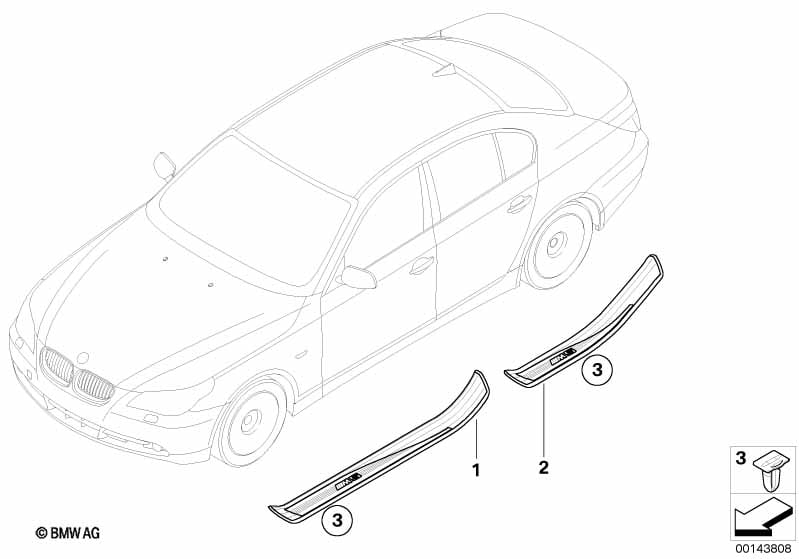

This Retrofit, M cover, entrance technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | M trim piece, front left entry | M | 1 | 02/2007 | 51477897239 | $72.40 | ENDED | Shop at ECS Tuning | ||
| 01 | M trim piece, front left entry | M | 1 | 51477898821 | $70.62 | ENDED | Shop at ECS Tuning | |||
| 01 | M trim piece, front right entry | M | 1 | 02/2007 | 51477897240 | $70.62 | ENDED | Shop at ECS Tuning | ||
| 01 | M trim piece, front right entry | M | 1 | 51477898822 | $70.62 | Shop at ECS Tuning | ||||
| 02 | M trim piece, rear left entry | M | 1 | 02/2007 | 51477897245 | $59.40 | ENDED | Shop at ECS Tuning | ||
| 02 | M trim piece, rear left entry | M | 1 | 51477898823 | $59.40 | Shop at ECS Tuning | ||||
| 02 | M trim piece, rear right entry | M | 1 | 02/2007 | 51477897246 | $59.40 | ENDED | Shop at ECS Tuning | ||
| 02 | M trim piece, rear right entry | M | 1 | 51477898824 | $59.40 | Shop at ECS Tuning | ||||
| 03 | Clip, yellow | L=11,2MM | X | 51478244458 | $0.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Retrofit, M cover, entrance?
- This technical diagram illustrates the Retrofit, M cover, entrance within the Retrofitting / conversion / accessories group for the 5 Series E60 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the M trim piece, front left entry (Part #51477897239).
- Which models use the hardware listed in this Retrofit, M cover, entrance?
- The hardware and components featured in the Retrofit, M cover, entrance are specific to the 5 Series E60 525i produced during 2007. These technical specifications ensure that parts like the M trim piece, front left entry (51477897239) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, M cover, entrance assembly?
- Each item in the Retrofit, M cover, entrance corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the M trim piece, front left entry by locating its position on the schematic, which then links to the official BMW part number 51477897239 for the Retrofitting / conversion / accessories section.
