Aerodynamics package for BMW 3 Series E46 330d (2001)

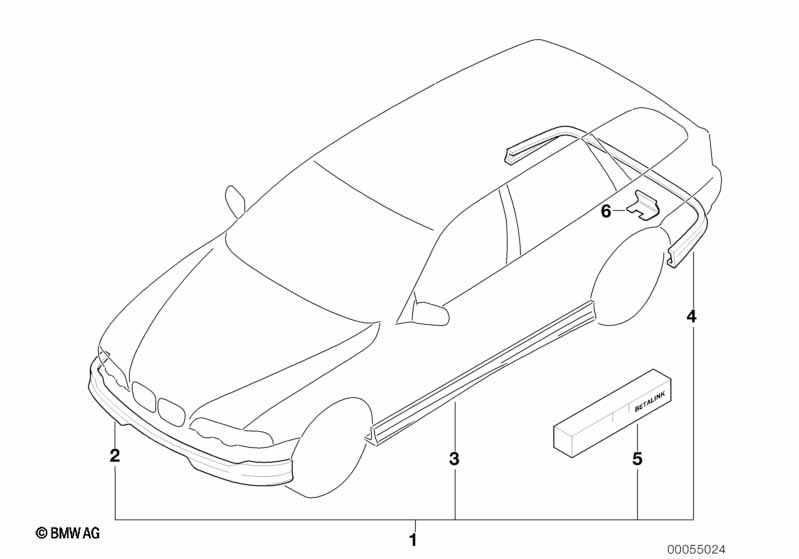

This Aerodynamics package technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| 01 | Aerodynamics package | 1 | 09/1999 | 09/2001 | 51190007000 | $404.95 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 02 | Spoiler front | 1 | 09/1999 | 09/2001 | 82629410896 | $338.95 | ENDED, ABE 9415949 | Shop at ECS Tuning | ||
| 03 | Installing set outer kick panel | 1 | 09/1999 | 09/2001 | 82659410897 | $401.95 | ENDED, ABE 9415950 | Shop at ECS Tuning | ||
| 04 | Installing set rear apron | E 46/3 | 1 | 09/1999 | 09/2001 | 51120006999 | $193.62 | ENDED | Shop at ECS Tuning | |
| 05 | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | HECKSCHÜRZE AHK | 1 | 09/1999 | 09/2001 | 51120008739 | $72.54 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
