Roof spoiler for BMW 3 Series E36 318ti (1995)

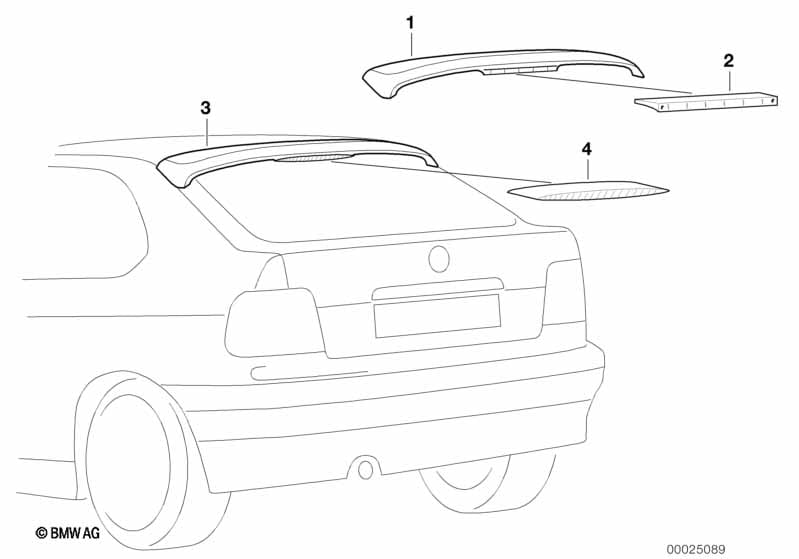

This Roof spoiler technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set rear spoiler | LACKIERT | 1 | 82639404957 | ENDED, +core, ABE 9789067 | Shop at ECS Tuning | ||||
| 02 | Stoplamp rear spoiler | 1 | 63252489862 | $93.33 | ENDED | Shop at ECS Tuning | ||||
| 03 | Installing set rear spoiler | VERSION II, LED | 1 | 82639404041 | $359.95 | ENDED, ABE 9789067 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Stoplamp rear spoiler | ERSATZTEIL | 1 | 82699415424 | $121.95 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Roof spoiler?
- This technical diagram illustrates the Roof spoiler within the Retrofitting / conversion / accessories group for the 3 Series E36 318ti produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Installing set rear spoiler (Part #82639404957).
- Which models use the hardware listed in this Roof spoiler?
- The hardware and components featured in the Roof spoiler are specific to the 3 Series E36 318ti produced during 1995. These technical specifications ensure that parts like the Installing set rear spoiler (82639404957) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof spoiler assembly?
- Each item in the Roof spoiler corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Installing set rear spoiler by locating its position on the schematic, which then links to the official BMW part number 82639404957 for the Retrofitting / conversion / accessories section.
