Install.kit, independent heater for BMW 5 Series E39 528i (2000)

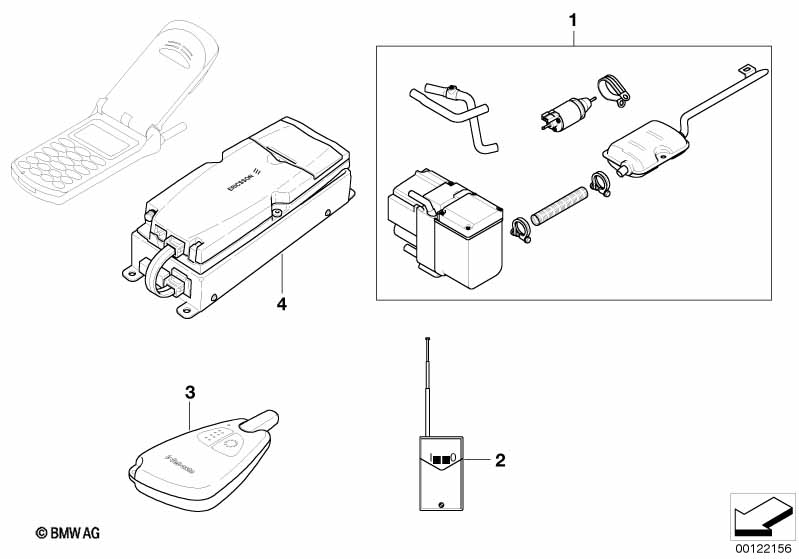

This Install.kit, independent heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. Mode of operation: bypass heating circuit w/o engine heat-up Operating note: Auxiliary heating system can be operated via MID/BM without additional control element |
|||||||||
| 04 | Thermo Call switch unit retrofit kit | TC1.1/EN | 1 | 64500151210 | ENDED | Shop at ECS Tuning | ||||
| 04 | Thermo Call switch unit retrofit kit | TC2/EN | 1 | 64500410819 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit cable set, independent heater | 1 | 61120150654 | ENDED | Shop at ECS Tuning | |||||
| 04 | Thermo Call switch unit retrofit kit | TC1.1/SV | 1 | 64500151211 | ENDED | Shop at ECS Tuning | ||||
| 04 | Thermo Call switch unit retrofit kit | TC1.0/DE/EN/SV | 1 | 82300028550 | ENDED | Shop at ECS Tuning | ||||
| 04 | Thermo Call switch unit retrofit kit | TC1.1/DE | 1 | 64500149365 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
