Installation kit alarm system for BMW 3 Series E46 330Cd (2006)

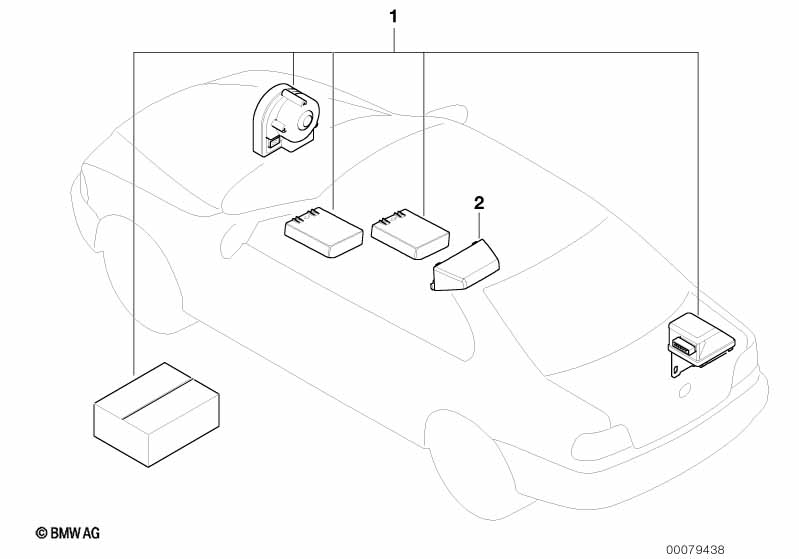

This Installation kit alarm system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Installation kit alarm system | 1 | 65600021150 | $543.49 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing for center console | SCHWARZ | 1 | 51167024827 | $19.50 | Shop at ECS Tuning | ||||
| The housing for the radio-operated interior movement detector module must be ordered separately depending on the color of the center console. |
||||||||||
| 02 | Housing for center console | GRAU | 1 | 51167024828 | $19.50 | ENDED, +core | Shop at ECS Tuning | |||
| The housing for the radio-operated interior movement detector module must be ordered separately depending on the color of the center console. |
||||||||||
| 02 | Housing for center console | BEIGE | 1 | 51167024829 | $19.50 | +core | Shop at ECS Tuning | |||
| The housing for the radio-operated interior movement detector module must be ordered separately depending on the color of the center console. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
