Installation kit alarm system for BMW 1 Series E81 120i (2011)

This Installation kit alarm system technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.

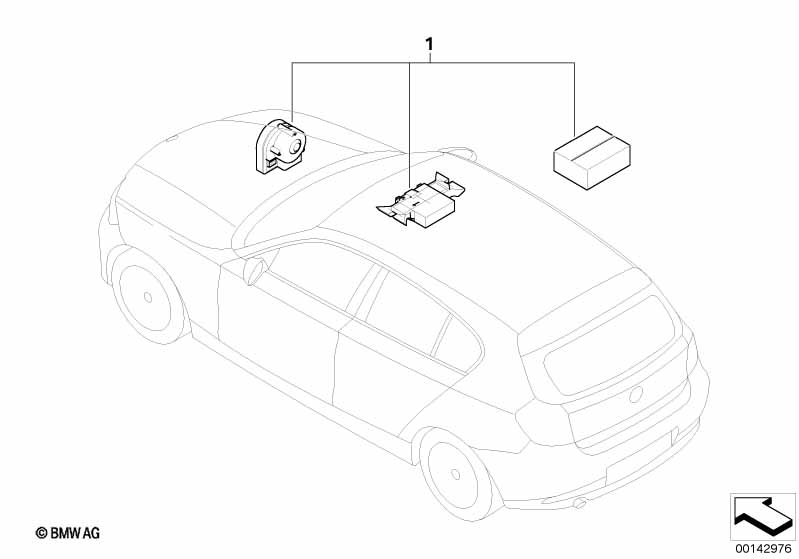

Installation kit alarm system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only suitable for vehicles with
installed roof function center!
Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
Only suitable for vehicles with
alarm system LED on rearview
mirror as factory equipment.
For vehicles with
Comfort access

S322A=No
01 Retrofit kit, theft alarm 1 03/2009 65122167739 ENDED Shop at ECS Tuning
additionally required parts:
Headliner
Interior reading light, rear
Door lock
For vehicles with
Comfort access

S322A=Yes
01 Retrofit kit, theft alarm 1 03/2009 65122167739 ENDED Shop at ECS Tuning
additionally required parts:
Headliner
Interior reading light, rear
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

Frequently Asked Questions

What assembly is shown in the BMW 1 Series E81 120i Installation kit alarm system?
This technical diagram illustrates the Installation kit alarm system within the Retrofitting / conversion / accessories group for the 1 Series E81 120i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, theft alarm (Part #65122167739).
Which models use the hardware listed in this Installation kit alarm system?
The hardware and components featured in the Installation kit alarm system are specific to the 1 Series E81 120i produced during 2011. These technical specifications ensure that parts like the Retrofit kit, theft alarm (65122167739) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Installation kit alarm system assembly?
Each item in the Installation kit alarm system corresponds to the numbered list below the illustration. For the 1 Series E81 120i, you can identify the Retrofit kit, theft alarm by locating its position on the schematic, which then links to the official BMW part number 65122167739 for the Retrofitting / conversion / accessories section.
