Installation kit alarm system for BMW 3 Series E91 LCI 330xd (2008)

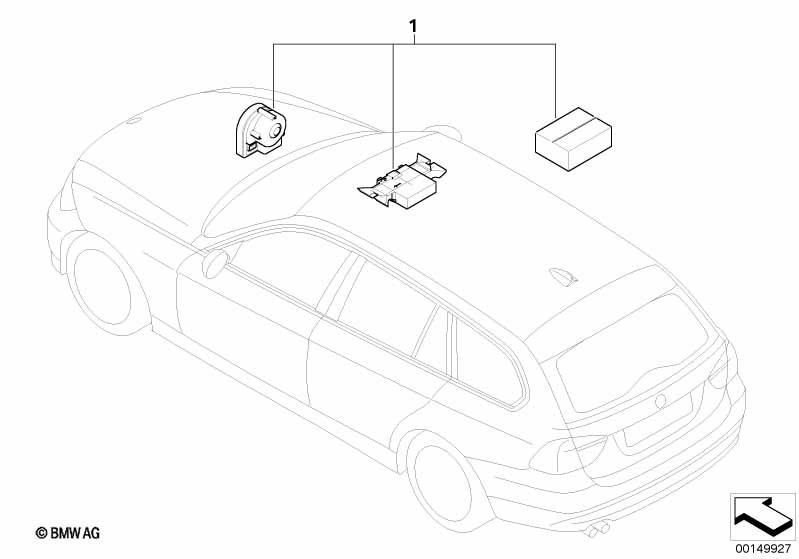

This Installation kit alarm system technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only suitable for vehicles with installed roof function center! Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Retrofit kit, theft alarm | 1 | 03/2009 | 65120410400 | ENDED, +core | Shop at ECS Tuning | ||||
| additionally required parts: Interior mirror Cover f ultrasonic burglar alarm |
||||||||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 01 | Retrofit kit, theft alarm | 1 | 03/2009 | 65120410399 | ENDED, +core | Shop at ECS Tuning | ||||
| additionally required parts: Interior mirror Interior reading light, rear |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
