Alarm system for BMW 5 Series E34 525i (1990)

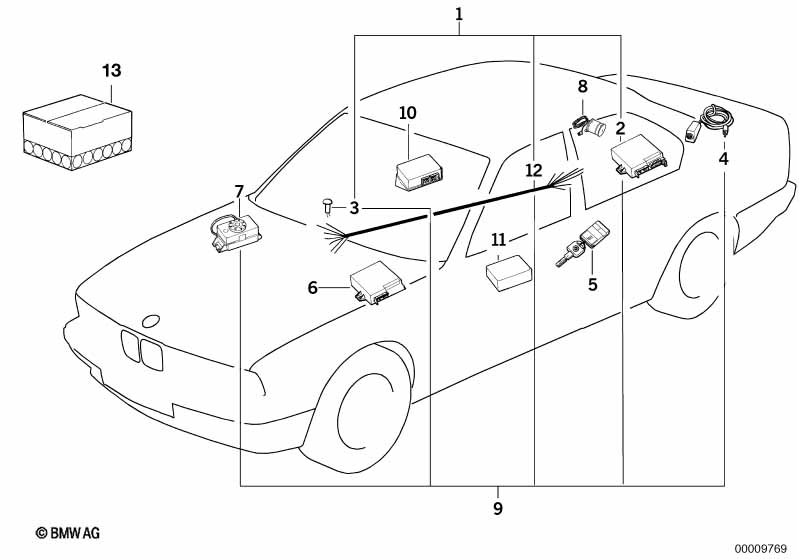

This Alarm system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Installation kit alarm system | 1 | 09/1992 | 82119418001 | ENDED | Shop at ECS Tuning | ||||
| 02 | Control unit alarm system | ESS | 1 | 82119418006 | ENDED | Shop at ECS Tuning | ||||
| 03 | LED indicator alarm system | ESS | 1 | 82119418013 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ultra sonic-module | ESS | 1 | 82119418012 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Installation kit alarm system | X | 82119418001 | ENDED | Shop at ECS Tuning | |||||
| -- | Installation kit alarm system | X | 82119418002 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=Yes |
|||||||||
| 05 | Remote control | 1 | 82119418015 | ENDED, +core | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit, radio remote control | X | 82119418008 | +core | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 05 | Remote control | 1 | 82119418016 | ENDED, +core | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit, radio remote control | X | 82119418009 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=Yes |
|||||||||
| 06 | Retrofit kit, radio remote control | 1 | 82119418008 | +core | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Installation kit alarm system | X | 82119418001 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 06 | Retrofit kit, radio remote control | 1 | 82119418009 | ENDED | Shop at ECS Tuning | |||||
| 07 | Retrofit kit, alternative power siren | ESS | 1 | 82119418010 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tilt-alarm sending unit | AS1010H | 1 | 82119418270 | $257.80 | ENDED, +core | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Installation kit alarm system | X | 82119418001 | ENDED | Shop at ECS Tuning | |||||
| -- | Installation kit alarm system | X | 82119418002 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 09 | Installation kit alarm system | 1 | 09/1992 | 82119418002 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
