Retrofit kit, tr. cpl., elec. swiveling for BMW 5 Series E60 LCI 525d (2009)

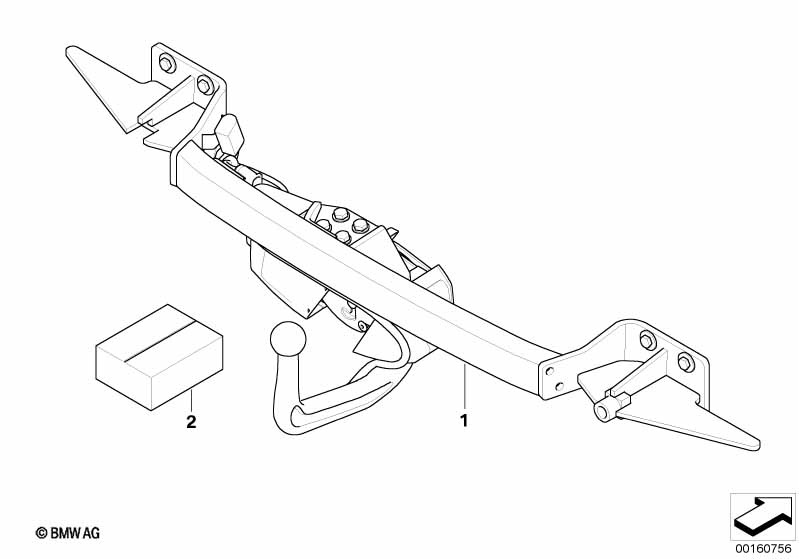

This Retrofit kit, tr. cpl., elec. swiveling technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | --------------------------- Replacement of the "fan cowl with fan" may be required. If the diagram for Main Assembly Group 17 indicates that "fan cowl with fan" is part of the special equipment for trailer couplings then this part number must be ordered and installed. If no part number is indicated as trailer coupling special equipment, then it will not be necessary to replace the "fan cowl with fan." Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. For vehicles with M Sports package |
P337A=No |
||||||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606795730 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Panel wheel housing part.trunk left | 1 | 51479165747 | $43.81 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=No |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606795730 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Holder Top-Hifi system amplifier | 1 | 65159135720 | $15.32 | Shop at ECS Tuning | |||||
| -- | Panel wheel housing part.trunk left | 1 | 51479165747 | $43.81 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Hex bolt | M5X14 | 3 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 02 | Retrofit kit, electr. additional parts | 1 | 71602155442 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
