Retrofit kit, tr. cpl., elec. swiveling for BMW 7 Series F02 LCI 740Li (2015)

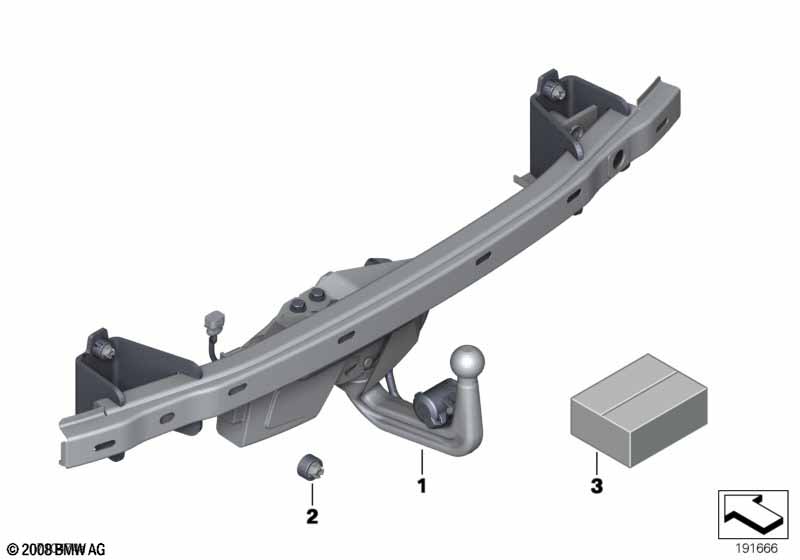

This Retrofit kit, tr. cpl., elec. swiveling technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | --------------------------- If the vehicle type is not listed please note PuMA measure 54321507! Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606860585 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Control unit AHK | 1 | 71606856980 | +core | Shop at ECS Tuning | |||||
| -- | Covering, rear center | 1 | 51757187960 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606864727 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Control unit AHK | 1 | 71606856980 | +core | Shop at ECS Tuning | |||||
| 02 | Hex nut | M12 | 4 | 71606772024 | $7.95 | Shop at ECS Tuning | ||||
| 03 | Retrofit kit, electr. additional parts | 1 | 71602296610 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
