Retrofit kit, tr. cpl., elec. swiveling for BMW 5 Series F07 GT 535d

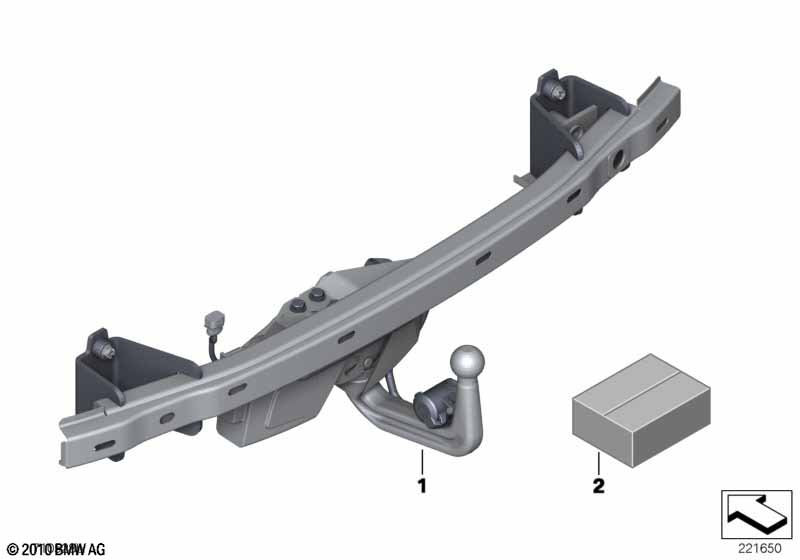

This Retrofit kit, tr. cpl., elec. swiveling technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT 535d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Replacement of the "fan cowl with fan" may be required. If the diagram for Main Assembly Group 17 indicates that "fan cowl with fan" is part of the special equipment for trailer couplings then this part number must be ordered and installed. If no part number is indicated as trailer coupling special equipment, then it will not be necessary to replace the "fan cowl with fan." Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 07/2012 | 71606796289 | +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 01 | Trailer coupling, electric swiveling | 1 | 07/2012 | 71606796289 | +core | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary heating |
S536A=No |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 07/2012 | 71602296611 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit electr. mounting parts, fan | 1 | 07/2012 | 71602166476 | ENDED | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 07/2012 | 71602296611 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit electr. mounting parts, fan | 1 | 07/2012 | 71602166476 | ENDED | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
| -- | Battery cable positive, below-floor | 80 MM² | 1 | 07/2012 | 61129348280 | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
| For vehicles with Comfort access and Auxiliary heating |
S322A=No S536A=Yes |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 07/2012 | 71602296611 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit electr. mounting parts, fan | 1 | 07/2012 | 71602166476 | ENDED | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
| -- | Battery cable positive, below-floor | 80 MM² | 1 | 07/2012 | 61129348280 | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
| For vehicles with Comfort access or Auxiliary heating |
S322A=No S536A=No |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 07/2012 | 71602296611 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit electr. mounting parts, fan | 1 | 07/2012 | 71602166476 | ENDED | Shop at ECS Tuning | ||||
| only together with fan cowl with fan | ||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
