Trailer coupling for BMW 3 Series E36 320i (1999)

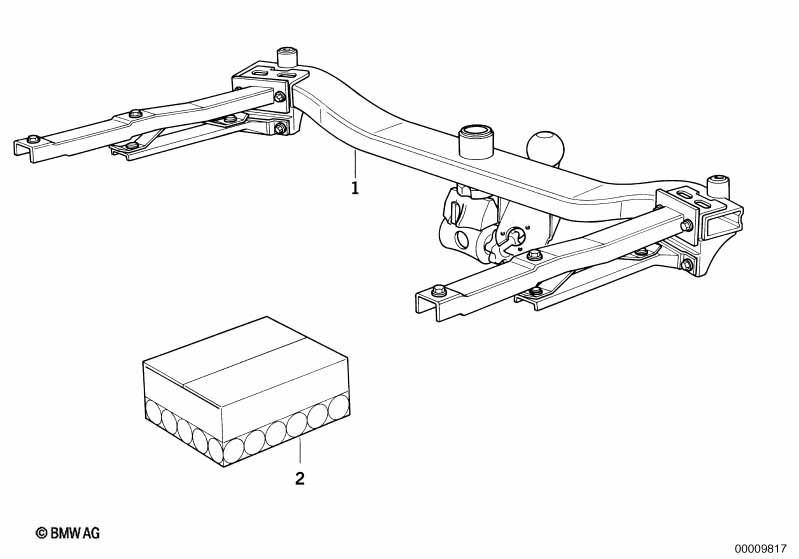

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 02 | Set of mounting electric parts | 1 | 71609401817 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel | 1 | 51128119270 | Shop at ECS Tuning | ||||||
| For vehicles with Check Control |
=Yes |
|||||||||
| 02 | Set of mounting electric parts | 1 | 71609401816 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel | 1 | 51128119270 | Shop at ECS Tuning | ||||||
| For vehicles with M technic rear apron |
=Yes |
|||||||||
| 02 | Set of mounting electric parts | 1 | 71609401817 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Flap | M TECHNIC | 1 | 51122233798 | $75.87 | Shop at ECS Tuning | ||||
| -- | Fixing clamp left | M TECHNIC | 1 | 51122234977 | $4.98 | Shop at ECS Tuning | ||||
| -- | Fixing clamp right | M TECHNIC | 1 | 51122234978 | $4.98 | Shop at ECS Tuning | ||||
| -- | Trim panel | M TECHNIC | 1 | 51122253200 | $164.05 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M technic rear apron and Check Control |
=Yes =Yes |
|||||||||
| 02 | Set of mounting electric parts | 1 | 71609401816 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Flap | M TECHNIC | 1 | 51122233798 | $75.87 | Shop at ECS Tuning | ||||
| -- | Fixing clamp left | M TECHNIC | 1 | 51122234977 | $4.98 | Shop at ECS Tuning | ||||
| -- | Fixing clamp right | M TECHNIC | 1 | 51122234978 | $4.98 | Shop at ECS Tuning | ||||
| -- | Trim panel | M TECHNIC | 1 | 51122253200 | $164.05 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
