Trailer coupling for BMW 5 Series E34 525td (1995)

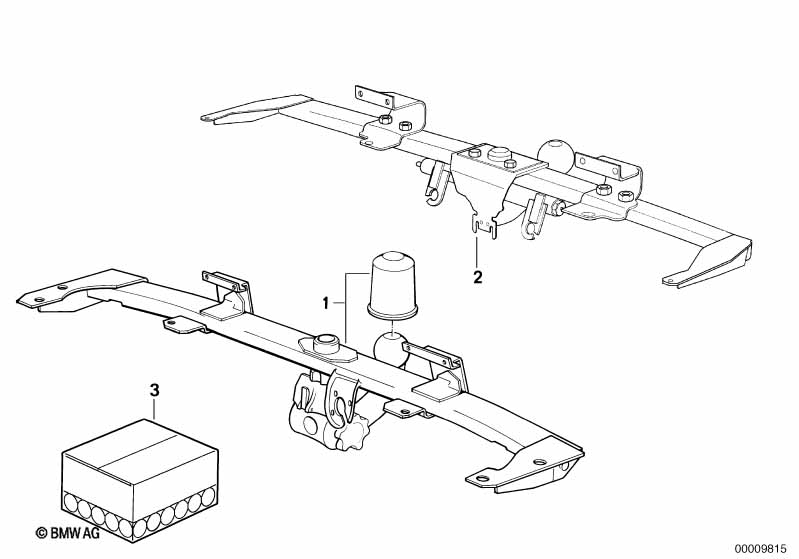

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Towing hitch, detachable | WESTFALIA | 1 | 71601134218 | $1032.30 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Towing hitch, detachable | ORIS | 1 | 71601136373 | $1032.30 | Shop at ECS Tuning | ||||
| 03 | Set of mounting electric parts | 1 | 71609059103 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel right | MITTELGRAU | 1 | 51478102910 | $81.45 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH COIL SPRING |
||||||||||
| For vehicles with M technic rear apron |
=Yes |
|||||||||
| 03 | Set of mounting electric parts | 1 | 71609059103 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel right | MITTELGRAU | 1 | 51478102910 | $81.45 | Shop at ECS Tuning | ||||
| -- | Flap | M TECHNIC | 1 | 51122230416 | $26.30 | Shop at ECS Tuning | ||||
| -- | Clamp | M TECHNIC | 4 | 51122231623 | $0.74 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
