Trailer coupling for BMW 3 Series E30 320i (1988)

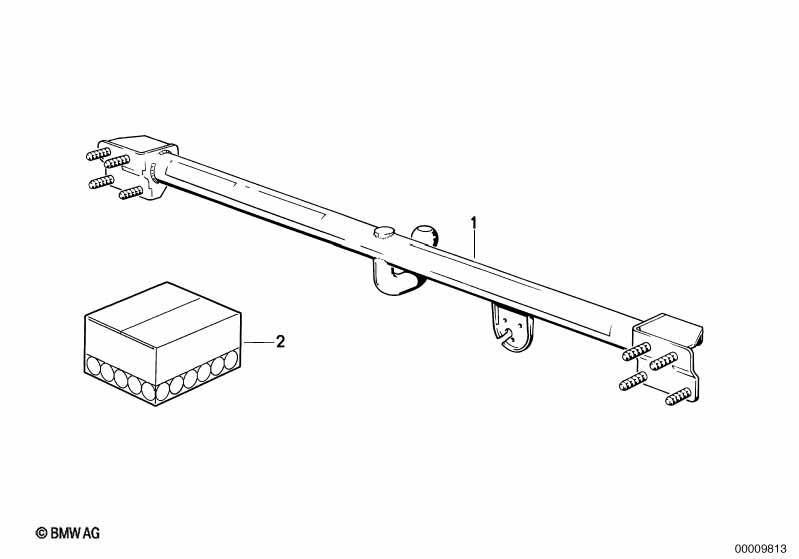

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO PERS.TRAILER LOAD 1200KG | ||||||||||
| 01 | Towing hitch, detachable | 1 | 09/1987 | 71601134237 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SET COIL SPRINGS |
||||||||||
| 01 | Towing hitch, detachable | WESTFALIA | 1 | 09/1987 | 71601134233 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SET COIL SPRINGS |
||||||||||
| 01 | Trailer hitch with fixed ball head | 1 | 09/1987 | 71601134396 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH SET COIL SPRINGS |
||||||||||
| 02 | Set of mounting electric parts | 1 | 09/1987 | 71609061116 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Wiring const.power connect.trailer hitch | 1 | 09/1987 | 61121394068 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
