Trailer coupling for BMW 7 Series E23 728i (1986)

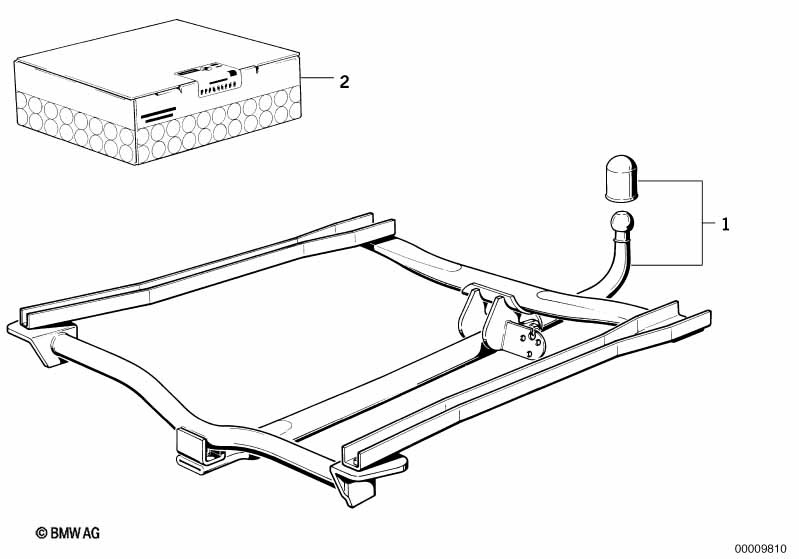

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Towing hitch, detachable | 2000KG | 1 | 71601246511 | $929.07 | Shop at ECS Tuning | ||||
| 01 | Trailer hitch with fixed ball head | 2000KG | 1 | 71601246512 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of mounting electric parts | 1 | 09/1984 | 71609056560 | $170.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Trailer coupling?
- This technical diagram illustrates the Trailer coupling within the Retrofitting / conversion / accessories group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Towing hitch, detachable (Part #71601246511).
- Which models use the hardware listed in this Trailer coupling?
- The hardware and components featured in the Trailer coupling are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Towing hitch, detachable (71601246511) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailer coupling assembly?
- Each item in the Trailer coupling corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Towing hitch, detachable by locating its position on the schematic, which then links to the official BMW part number 71601246511 for the Retrofitting / conversion / accessories section.
