Trailer coupling for BMW 5 Series E28 518 (1984)

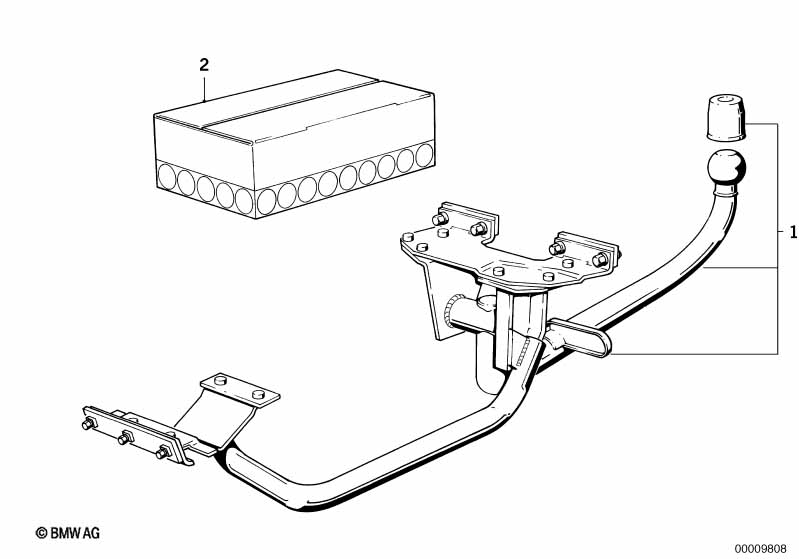

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trailer hitch with fixed ball head | 1800KG | 1 | 71601129279 | ENDED | Shop at ECS Tuning | ||||
| 01 | Towing hitch, detachable | 1800KG | 1 | 71601129280 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M TECHNIC | ||||||||||
| 01 | Trailer hitch with fixed ball head | 1800KG | 1 | 71601129595 | ENDED | Shop at ECS Tuning | ||||
| 01 | Towing hitch, detachable | 1800KG | 1 | 71601129596 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of mounting electric parts | 1 | 71601376303 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518 Trailer coupling?
- This technical diagram illustrates the Trailer coupling within the Retrofitting / conversion / accessories group for the 5 Series E28 518 produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Trailer hitch with fixed ball head (Part #71601129279).
- Which models use the hardware listed in this Trailer coupling?
- The hardware and components featured in the Trailer coupling are specific to the 5 Series E28 518 produced during 1984. These technical specifications ensure that parts like the Trailer hitch with fixed ball head (71601129279) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailer coupling assembly?
- Each item in the Trailer coupling corresponds to the numbered list below the illustration. For the 5 Series E28 518, you can identify the Trailer hitch with fixed ball head by locating its position on the schematic, which then links to the official BMW part number 71601129279 for the Retrofitting / conversion / accessories section.
