Wiring set trailer coupling for BMW 5 Series E12 520i (1976)

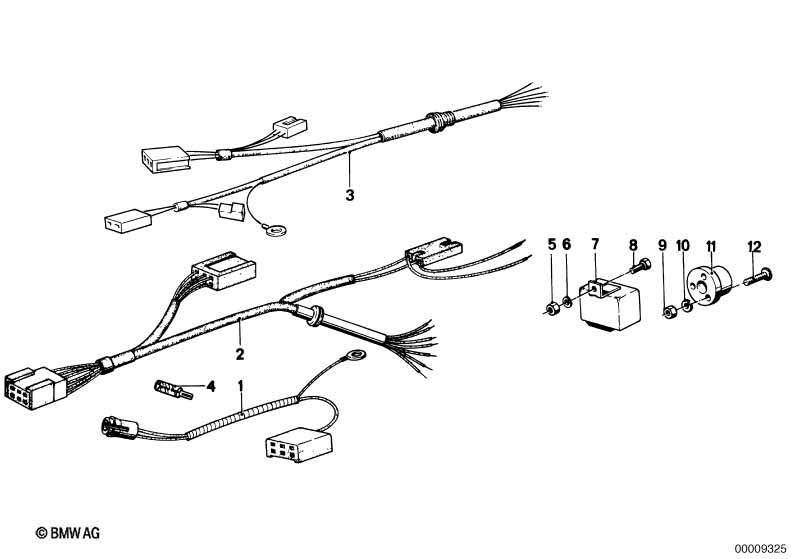

This Wiring set trailer coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring turn signal control | 1 | 61121356163 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wiring set trailer coupling | 1 | 08/1976 | 61121363151 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 1,2W | X | 07509063579 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6 | 1 | 08/1996 | 23112322368 | $0.38 | ENDED | Shop at ECS Tuning | ||
| 05 | Hex nut | M6-8-ZNS | 1 | 07119922832 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Tooth washer | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Hazard warning relay | BOSCH | 1 | 61311356383 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hazard warning relay | HELLA | 1 | 61311365117 | $40.21 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X8 | 1 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | M5 | 3 | 07119922038 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Plug-in socket | 1 | 61131371124 | ENDED | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning |
