Wiring set trailer coupling for BMW 3 Series E21 318i (1982)

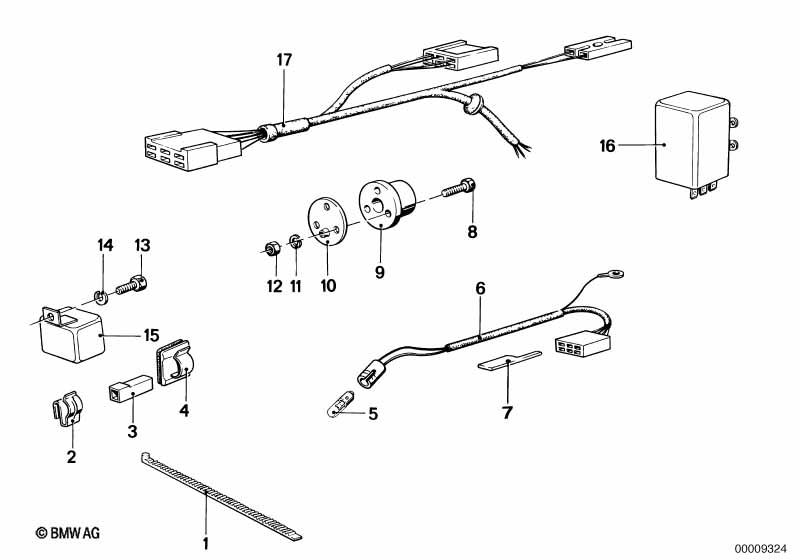

This Wiring set trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Cable clamp | D=9/B=1,5 | 1 | 61131350591 | $1.66 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable clamp | D=9/B=2,5 | 1 | 61131350864 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Insulation sleeve | 6 | 61131354668 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Tubing support | 1 | 61131361243 | $1.77 | Shop at ECS Tuning | |||||
| 05 | Bulb | 12V 1,2W | 1 | 12/1991 | 07119978375 | $1.42 | ENDED | Shop at ECS Tuning | ||
| 05 | Bulb | 12V 1,2W | X | 07509063579 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 05 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 06 | Wiring turn signal control | 1 | 61121367671 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 61131365655 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Plug-in socket | 1 | 61131371124 | ENDED | Shop at ECS Tuning | |||||
| 10 | Gasket | 1 | 61131364967 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M5 | 3 | 07119922038 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister head self-tapping screw | ST4,8X9,5 | 1 | 12/1983 | 07119906762 | $0.12 | ENDED | Shop at ECS Tuning | ||
| 13 | Sheet metal screw | ST4,8X9,5-C-H-Z | 1 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 14 | Tooth washer | A5,1 | 1 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Hazard warning relay | 1 | 61311372021 | $48.49 | Shop at ECS Tuning | |||||
| 17 | Wiring set | 1 | 61121360062 | ENDED | Shop at ECS Tuning |
