Retrofit kit trailer coupling detachable for BMW MINI Clubman F54 One (2019)

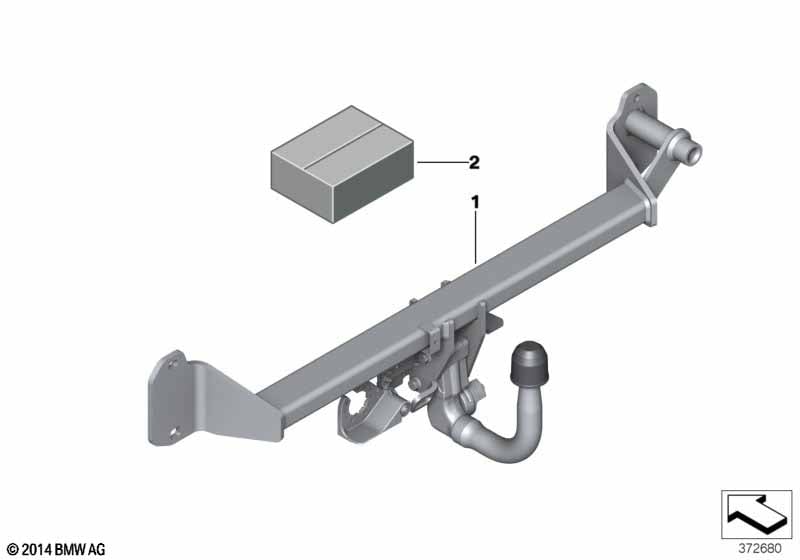

This Retrofit kit trailer coupling detachable technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Multiple installation instructions can be displayed. The correct ones can be identified based on the part numbers and trailer hitch variant. Replacement of the "fan cowl with fan" may be required. If the diagram for Main Assembly Group 17 indicates that "fan cowl with fan" is part of the special equipment for trailer couplings then this part number must be ordered and installed. If no part number is indicated as trailer coupling special equipment, then it will not be necessary to replace the "fan cowl with fan." In some engine versions it may be necessary to exchange the heat insulation. The smart-opener function must be deactivated for vehicles with OE322. The black band may need to be replaced. If the BTE HG 51 shows a black band for the trailer tow hitch optional equipment, then this part number must also be ordered and installed. In the case of the JCW package, the black band has to be replaced with the basic black band for the trailer tow hitch Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. Attention! The replacement of the BDC must always be factored in as an option. |
|||||||||
| For vehicles with Comfort access or Preparations for rear luggage carrier Carry out the ISTA test and if the following hardware versions are present, the BDC should not be replaced for a trailer tow hitch retrofit. 00000F36 HW_Option_Body_TC_TERM30FREAR 00000F33 HW_Option_Body_LC_WBL_BLSH Perform ISTA test. If the following hardware variants are present, the BDC must not be replaced for a trailer hitch retrofit. 00000F36 00000F33 |
S322A=No S3ARA=Yes |
|||||||||
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 71606875020 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Heat insulation, bumper, rear | 1 | 51487375658 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access or Preparations for rear luggage carrier Perform ISTA test. If the following hardware variants are present, the BDC must not be replaced for a trailer hitch retrofit. 00000F36 00000F33 |
S322A=Yes S3ARA=Yes |
|||||||||
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 71606875020 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Heat insulation, bumper, rear | 1 | 51487375658 | Shop at ECS Tuning | ||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 71602245628 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 71606872066 | Shop at ECS Tuning | ||||||
| -- | Control unit for trailer hitch | 1 | 71606884356 | ENDED | Shop at ECS Tuning | |||||
| -- | Bus interface 10x | 120 OHM | 1 | 61136814611 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling preparation |
S8SLA=Yes |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 71602245628 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 71606872066 | Shop at ECS Tuning | ||||||
| -- | Control unit for trailer hitch | 1 | 71606884356 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
