Power kit without brake upgrade for BMW 2 Series F22 220dX (2017)

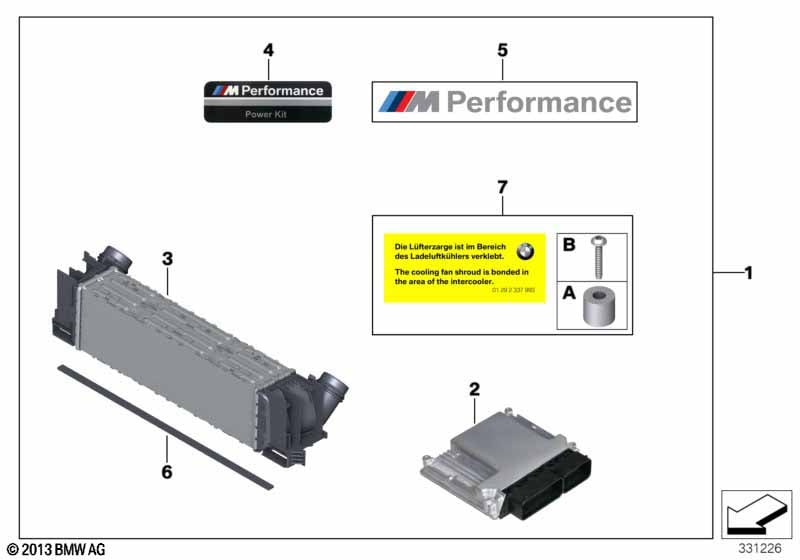

This Power kit without brake upgrade technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pos02-07 are exclusively spare parts For vehicles with National version China and Emissions standard EU5 and Emissions standard EU6 |
L8AAA=No S161A=No S164A=No |
||||||||
| 01 | Power Kit | M PERFORMANCE | 1 | 03/2018 | 11122405694 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Stick-on label | M PERFORMANCE | 1 | 03/2018 | 01292410481 | Shop at ECS Tuning | ||||
| 02 | Base control unit DDE M Performance | M PERFORMANCE | 1 | 13618588639 | Shop at ECS Tuning | |||||
| 03 | Charge-air cooler | 1 | 17517600533 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive strips | BMW PERFORMANCE | 1 | 17512179162 | Shop at ECS Tuning | |||||
| 04 | Badge | M PERFORMANCE | 1 | 51142296495 | +core | Shop at ECS Tuning | ||||
| 05 | Decal kit | M PERFORMANCE | 1 | 51142296551 | Shop at ECS Tuning | |||||
| 06 | Adhesive strips | BMW PERFORMANCE | 1 | 17512179162 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeves/screws/notice label | M PERFORMANCE | 1 | 17512337930 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 220dX Power kit without brake upgrade?
- This technical diagram illustrates the Power kit without brake upgrade within the Retrofitting / conversion / accessories group for the 2 Series F22 220dX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Power Kit (Part #11122405694).
- Which models use the hardware listed in this Power kit without brake upgrade?
- The hardware and components featured in the Power kit without brake upgrade are specific to the 2 Series F22 220dX produced during 2017. These technical specifications ensure that parts like the Power Kit (11122405694) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power kit without brake upgrade assembly?
- Each item in the Power kit without brake upgrade corresponds to the numbered list below the illustration. For the 2 Series F22 220dX, you can identify the Power Kit by locating its position on the schematic, which then links to the official BMW part number 11122405694 for the Retrofitting / conversion / accessories section.
