Retrofit engine kit for BMW 3 Series E46 330Ci (2006)

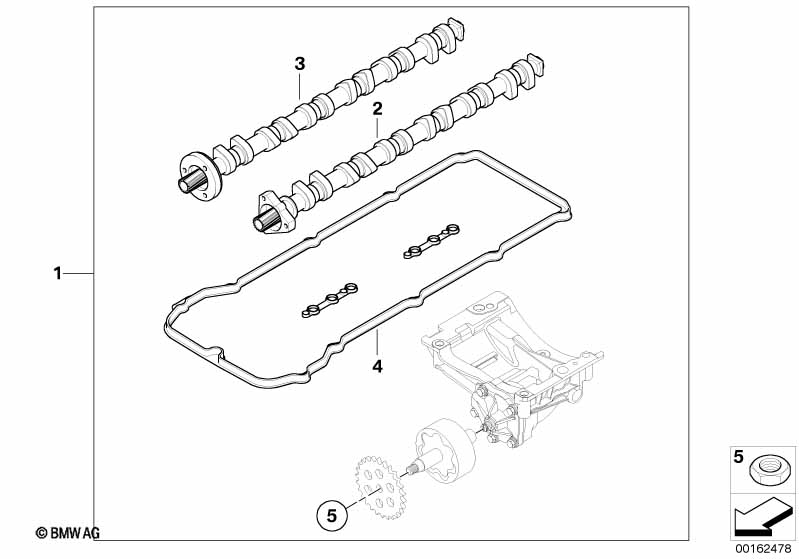

This Retrofit engine kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine kit | BMW PERFORMANCE | 1 | 11120429575 | $740.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Inlet camshaft | 1 | 11317919241 | $585.21 | Shop at ECS Tuning | |||||
| 03 | Camshaft exhaust | 1 | 11317833596 | $585.21 | Shop at ECS Tuning | |||||
| 04 | Set of profile gaskets | 1 | 11120030496 | $38.45 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M10X1-LH | 1 | 11417897238 | $1.02 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Retrofit engine kit?
- This technical diagram illustrates the Retrofit engine kit within the Retrofitting / conversion / accessories group for the 3 Series E46 330Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Engine kit (Part #11120429575).
- Which models use the hardware listed in this Retrofit engine kit?
- The hardware and components featured in the Retrofit engine kit are specific to the 3 Series E46 330Ci produced during 2006. These technical specifications ensure that parts like the Engine kit (11120429575) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit engine kit assembly?
- Each item in the Retrofit engine kit corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Engine kit by locating its position on the schematic, which then links to the official BMW part number 11120429575 for the Retrofitting / conversion / accessories section.
