Fire extinguisher for BMW 3 Series E90 320d (2007)

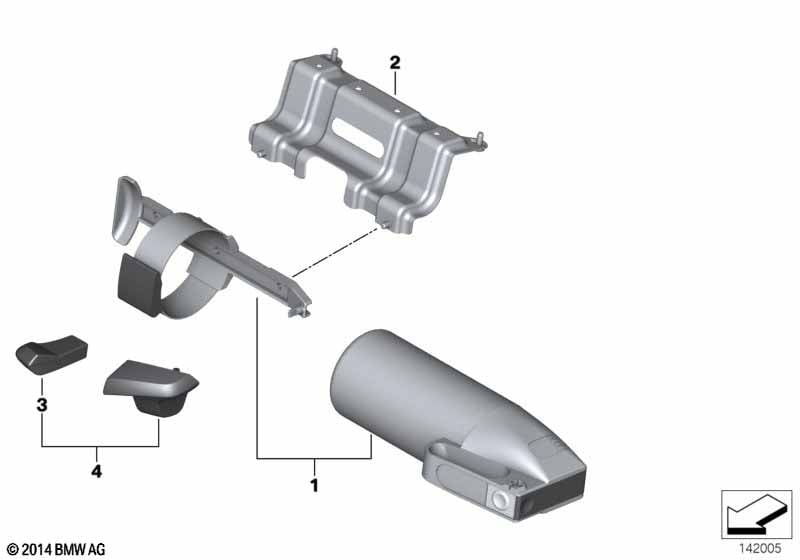

This Fire extinguisher technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW Performance Sport Seat |
SZPAA=No |
||||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Installing set fire-extinguisher powder | 1 KG | 1 | 72600000335 | +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Partially electric seat adjustment |
S481A=No S4UAA=Yes |
|||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100413022 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Left lever short | 1 | 52100391555 | $4.97 | ENDED | Shop at ECS Tuning | ||||
| Installation on front passenger seat | ||||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100413021 | $19.75 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=No |
|||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100413021 | $19.75 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100413022 | ENDED, +core | Shop at ECS Tuning | ||||
| Installation on front passenger seat | ||||||||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100408186 | $19.00 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100408187 | ENDED | Shop at ECS Tuning | ||||
| Installation on front passenger seat | ||||||||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=Yes |
|||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100408186 | $19.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=No |
|||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100408186 | $19.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=Yes |
|||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100408187 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Left lever short kit | RHD | 1 | 52100392435 | $9.71 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=No |
|||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100408187 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Left lever short kit | RHD | 1 | 52100392435 | $9.71 | ENDED | Shop at ECS Tuning | |||
| Installation on front passenger seat | ||||||||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=No S459A=No S4UAA=No |
|||||||||
| 02 | Mounting parts set f fire extinguisher | RHD | 1 | 52100413022 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Left lever short | 1 | 52100391555 | $4.97 | ENDED | Shop at ECS Tuning | ||||
| Installation on front passenger seat | ||||||||||
| 02 | Mounting parts set f fire extinguisher | LHD | 1 | 52100413021 | $19.75 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Right lever short | 1 | 52100391556 | $4.25 | ENDED | Shop at ECS Tuning | ||||
| Installation on front passenger seat | ||||||||||
| 03 | Left lever short | 1 | 52100391555 | $4.97 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right lever short | 1 | 52100391556 | $4.25 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=Yes |
|||||||||
| 04 | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Left lever short kit | RHD | 1 | 52100392435 | $9.71 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=Yes S459A=No S4UAA=No |
|||||||||
| 04 | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Left lever short kit | RHD | 1 | 52100392435 | $9.71 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Seat adjuster, electric, with memory and Partially electric seat adjustment |
S481A=No S459A=No S4UAA=Yes |
|||||||||
| 04 | Set of right lever short | LHD | 1 | 52100392434 | $8.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Left lever short kit | RHD | 1 | 52100392435 | $9.71 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
