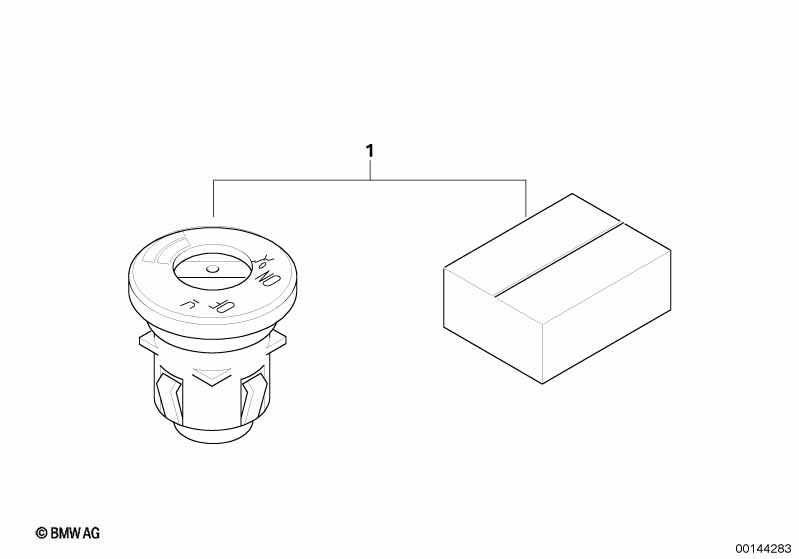

Retrofit, passenger airbag shutoff for BMW 3 Series E91 330xd (2008)
This Retrofit, passenger airbag shutoff technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. For vehicles with National version Korea and National version japan and National version Australia |
L802A=No L807A=No L810A=No |
||||||||
| Only suitable for vehicles with existing switch unit roof |
||||||||||
| 01 | Retrofit cable, deact. pass. airbag | 1 | 09/2008 | 61120400031 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Switch, passenger airbag deactivation | 1 | 09/2008 | 61319326501 | ENDED | Shop at ECS Tuning | ||||
| Only together with instrument panel cover only in conjunction with switch unit roof (For vehicles with SA470) |
||||||||||
| -- | Cable tie | L=100MM/B=2,5MM | 10 | 09/2008 | 61131372391 | $0.08 | Shop at ECS Tuning | |||
| Only together with instrument panel cover only in conjunction with switch unit roof (For vehicles with SA470) |
||||||||||
| -- | Insertion sheet, multilingual | BMW, MINI | 1 | 09/2008 | 01492602591 | $1.01 | Shop at ECS Tuning | |||
| Only together with instrument panel cover only in conjunction with switch unit roof (For vehicles with SA470) |
||||||||||
| -- | Insertion sheet, multilingual | BMW, MINI | 1 | 09/2008 | 01492602592 | $1.01 | Shop at ECS Tuning | |||
| Only together with instrument panel cover only in conjunction with switch unit roof (For vehicles with SA470) |
||||||||||
| -- | Installation instructions | 1 | 09/2008 | 01290400720 | Shop at ECS Tuning | |||||
| Only together with instrument panel cover only in conjunction with switch unit roof (For vehicles with SA470) |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
