DVD navigation with on-board monitor for BMW 3 Series E46 320d (2005)

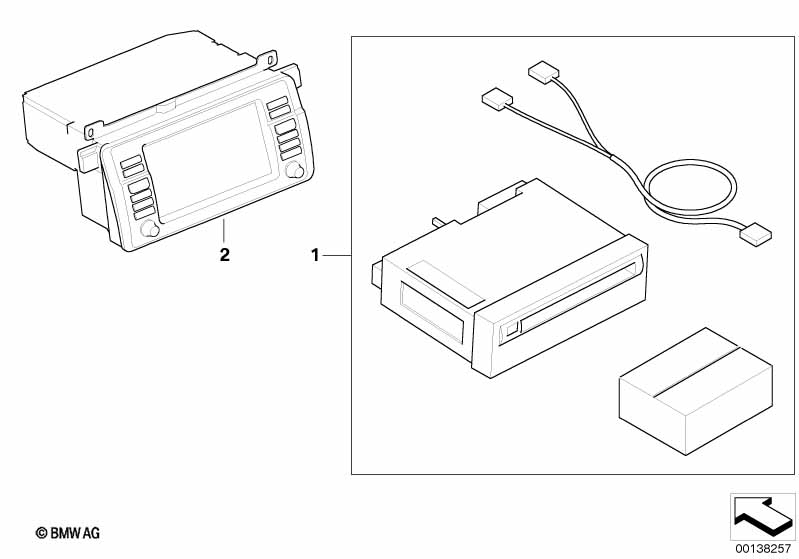

This DVD navigation with on-board monitor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. Following parts are to be ordered separately CD road map or DVD road map Operating instr., on-board monitor, TV and navigation TV function upgrade see BTE 651220 Vehicles with Radio Reverse For retrofitting antenna-diversity see individual parts in EPC. Only in conjunction with mounting bracket for option 609 (refer to ITU 51- 3233) For vehicles with Automatic air conditioning and On-board computer and On-board monitor with TV and Navigation system Business |
S534A=Yes S550A=Yes S602A=No S606A=No |
||||||||
| For vehicles with CD changer for 6 CDs |
S672A=Yes |
|||||||||
| 01 | DVD navigation with on-board monitor | WIDE SCREEN | 1 | 03/2001 | 65900391113 | ENDED, +core | Shop at ECS Tuning | |||
| Only in conjunction with suitable on- board monitor pos. 2 |
||||||||||
| For vehicles with CD changer for 6 CDs |
S672A=No |
|||||||||
| 01 | DVD navigation with on-board monitor | WIDE SCREEN | 1 | 03/2001 | 65900391113 | ENDED, +core | Shop at ECS Tuning | |||
| Only in conjunction with suitable on- board monitor pos. 2 Rear left trunk trim (see table 51_3257) |
||||||||||
| For vehicles with Radio BMW Business CD and CD changer for 6 CDs |
S662A=Yes S672A=No |
|||||||||
| 01 | DVD navigation with on-board monitor | WIDE SCREEN | 1 | 09/2001 | 65900391113 | ENDED, +core | Shop at ECS Tuning | |||
| Only in conjunction with suitable on- board monitor pos. 2 Rear left trunk trim (see table 51_3257) |
||||||||||
| For vehicles with Radio BMW Business CD and CD changer for 6 CDs |
S662A=Yes S672A=Yes |
|||||||||
| 01 | DVD navigation with on-board monitor | WIDE SCREEN | 1 | 09/2001 | 65900391113 | ENDED, +core | Shop at ECS Tuning | |||
| Only in conjunction with suitable on- board monitor pos. 2 |
||||||||||
| 02 | On-board monitor Wide Screen with MD | E46 | 1 | 65526934408 | ENDED | Shop at ECS Tuning | ||||
| 02 | On-board monitor Wide Screen with CC | E46 | 1 | 65526934409 | ENDED | Shop at ECS Tuning | ||||
| 02 | On-board monitor Wide Screen with CD | E46 | 1 | 65526934410 | $2695.14 | ENDED | Shop at ECS Tuning | |||
| 02 | On-board monitor Wide Screen with CD | E46 | 1 | 65526971855 | $2398.00 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
