DVD-system Portable for BMW 3 Series E90 LCI 325xi (2011)

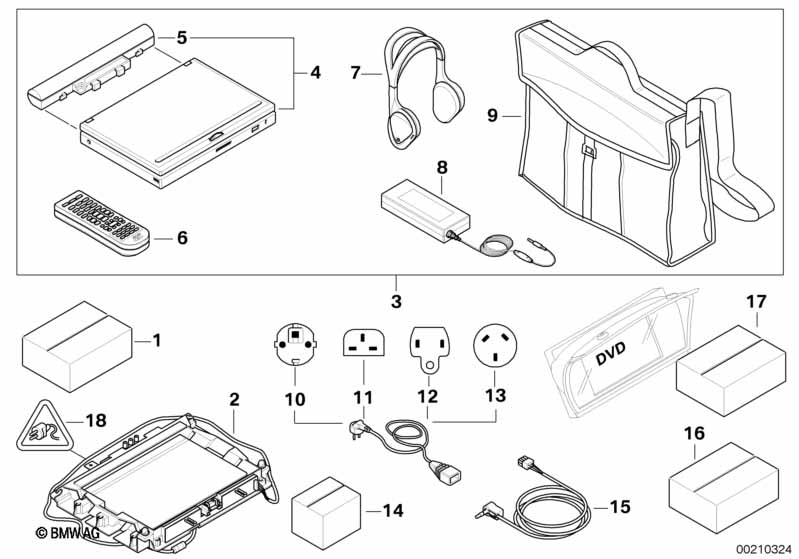

This DVD-system Portable technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note on the country codes: Country code 1 is intended for the following regions: Canada, USA and US territories Region code 2 is intended for the following regions: Europe, Japan, Middle East, Egypt, South Africa, Greenland Country code 3 is intended for the following regions: South-East Asia incl. Hong Kong and South Korea Country code 4 is intended for the following regions: Australia, New Zealand, Caribbean, Central America, South America, Pacific Islands Country code 5 is intended for the following regions: Former CIS countries, Indian subcontinent, Mongolia, North Korea, Africa (not Egypt, not South Africa) Region code 6 is intended for the following region: China Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| For vehicles with Alarm system and Glass roof, electrical |
S302A=Yes S403A=No |
|||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398188 | $354.95 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | HIMMELGRAU | 2 | 51447075109 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398188 | $354.95 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | BEIGE | 2 | 51447075110 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398188 | $354.95 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | SCHWARZ | 2 | 51447919702 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| For vehicles with Alarm system and Glass roof, electrical |
S302A=No S403A=Yes |
|||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398189 | $354.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with position 2 and position 3 |
||||||||||
| For vehicles with Alarm system and Glass roof, electrical |
S302A=Yes S403A=Yes |
|||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398189 | $354.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | HIMMELGRAU | 2 | 51447075109 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398189 | $354.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | BEIGE | 2 | 51447075110 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398189 | $354.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ultra sonic-module | 1 | 65759149674 | $193.97 | Shop at ECS Tuning | |||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| -- | Cover f ultrasonic burglar alarm | SCHWARZ | 2 | 51447919702 | $8.51 | Shop at ECS Tuning | ||||
| only in conjunction with position 2, 3 and position 14 |
||||||||||
| For vehicles with Alarm system and Glass roof, electrical |
S302A=No S403A=No |
|||||||||
| 01 | Install. kit for port. DVD system/gray | 1 | 65120398188 | $354.95 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with position 2 and position 3 |
||||||||||
| 02 | Docking Station/gray | 1 | 65120398174 | $383.95 | ENDED | Shop at ECS Tuning | ||||
| Only in conjunction with position 1 | ||||||||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 02 | Docking Station/beige | 1 | 65120411756 | $383.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover for portable DVD system/beige | 1 | 65120411761 | ENDED | Shop at ECS Tuning | |||||
| Only in conjunction with position 1 | ||||||||||
| -- | Lens f interior reading light rear | SANDBEIGE | 2 | 63316974432 | $5.98 | Shop at ECS Tuning | ||||
| Only in conjunction with position 1 | ||||||||||
| For vehicles with Glass roof, electrical |
S403A=No |
|||||||||
| 02 | Docking Station/beige | 1 | 65120411756 | $383.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover for portable DVD system/beige | 1 | 65120411759 | ENDED | Shop at ECS Tuning | |||||
| Only in conjunction with position 1 | ||||||||||
| -- | Lens f interior reading light rear | SANDBEIGE | 2 | 63316974432 | $5.98 | Shop at ECS Tuning | ||||
| Only in conjunction with position 1 | ||||||||||
| For vehicles with National version China or National version japan or Taiwan version Only in conjunction with position 1 |
L8AAA=Yes L807A=Yes L846A=Yes |
|||||||||
| 03 | DVD-system Portable | 1 | 65120428640 | ENDED | Shop at ECS Tuning | |||||
| Country code 2 only in conjunction with position 10, 11, 12 or 13 |
||||||||||
| 03 | DVD-system Portable | 1 | 65120428641 | ENDED | Shop at ECS Tuning | |||||
| Device is available with every country code. The country code is defined during the order by entering the required country name in the extra box (entry in German or English). only in conjunction with position 10, 11, 12 or 13 |
||||||||||
| For vehicles with National version China and National version japan and Taiwan version Only in conjunction with position 1 |
L8AAA=No L807A=No L846A=No |
|||||||||
| 03 | DVD-system Portable | 1 | 65120398187 | $1952.00 | ENDED, +core | Shop at ECS Tuning | ||||
| Device is available with every country code. The country code is defined during the order by entering the required country name in the extra box (entry in German or English). only in conjunction with position 10, 11, 12 or 13 |
||||||||||
| 04 | DVD player portable | 1 | 65120428643 | ENDED | Shop at ECS Tuning | |||||
| Device is available with every country code. The country code is defined during the order by entering the required country name in the extra box (entry in German or English). |
||||||||||
| 04 | DVD player portable | 1 | 65120428642 | ENDED | Shop at ECS Tuning | |||||
| Country code 2 | ||||||||||
| 05 | Battery, chargeable | 1 | 65120398180 | ENDED | Shop at ECS Tuning | |||||
| 06 | Remote control | 1 | 65120398181 | $41.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Headphones | 2 | 65122160479 | ENDED | Shop at ECS Tuning | |||||
| 08 | Mains adapter | 1 | 65120398177 | $120.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Satchel | 1 | 65120398178 | $80.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Mains cable | EU SCHUKO CEE 7 | 1 | 65120405114 | $10.27 | ENDED | Shop at ECS Tuning | |||
| 11 | Mains cable | UK BS 1363 | 1 | 65120405115 | $10.27 | ENDED | Shop at ECS Tuning | |||
| 12 | Mains cable | USA NEMA 5-15 | 1 | 65120405116 | $8.00 | ENDED | Shop at ECS Tuning | |||
| 13 | Mains cable | AUS AS 3112 | 1 | 65120406904 | $10.27 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 14 | Al.system inst.kit for DVD sys. Portable | E90 | 1 | 65120402516 | $61.00 | ENDED, +core | Shop at ECS Tuning | |||
| Only in conjunction with position 1 | ||||||||||
| For vehicles with Music interface for Smartphone |
S6NFA=Yes |
|||||||||
| 15 | Retrofit kit AUX-IN Portable DVD System | 1 | 65120409788 | ENDED, +core | Shop at ECS Tuning | |||||
| Allows audio reproduction using vehicle speakers Only in conjunction with position 1 |
||||||||||
| For vehicles with USB/Audio interface and Music interface for Smartphone |
S6FLA=Yes S6NFA=No |
|||||||||
| 15 | Retrofit kit AUX-IN Portable DVD System | 1 | 65120428672 | $115.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | USB/AUX-IN socket | 1 | 61310433518 | $84.50 | ENDED | Shop at ECS Tuning | ||||
| Allows audio reproduction using vehicle speakers Only in conjunction with position 1 |
||||||||||
| For vehicles with USB/Audio interface and Music interface for Smartphone |
S6FLA=No S6NFA=No |
|||||||||
| 15 | Retrofit kit AUX-IN Portable DVD System | 1 | 65120428672 | $115.95 | ENDED | Shop at ECS Tuning | ||||
| Allows audio reproduction using vehicle speakers Only in conjunction with position 1 |
||||||||||
| 16 | Upgrade kit DVB-T | 1 | 65120414748 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive tape | 1 | 65120415363 | ENDED | Shop at ECS Tuning | |||||
| Allows DVB-T play on the Portable DVD System with AUX link only together with DVB-T Set-top box (see ITU DVB-T Set-top box) only in conjunction with position 1 and position 15 not together with Position 17 |
||||||||||
| -- | Filter | DVD PORTABLE | 1 | 65120417650 | ENDED | Shop at ECS Tuning | ||||
| Allows DVB-T play on the Portable DVD System with AUX link only together with DVB-T Set-top box (see ITU DVB-T Set-top box) only in conjunction with position 1 and position 15 not together with Position 17 |
||||||||||
| 16 | Upgrade kit DVB-T | 1 | 65120414747 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive tape | 1 | 65120415363 | ENDED | Shop at ECS Tuning | |||||
| Allows DVB-T play on the Portable DVD System not in connection with position 15 not together with Position 17 only together with DVB-T Set-top box (see ITU DVB-T Set-top box) Only in conjunction with position 1 |
||||||||||
| -- | Filter | DVD PORTABLE | 1 | 65120417650 | ENDED | Shop at ECS Tuning | ||||
| Allows DVB-T play on the Portable DVD System not in connection with position 15 not together with Position 17 only together with DVB-T Set-top box (see ITU DVB-T Set-top box) Only in conjunction with position 1 |
||||||||||
| 17 | Upgrade kit ACM connection | DVD PORTABLE | 1 | 65120415434 | ENDED, +core | Shop at ECS Tuning | ||||
| Allows DVD play on the 2 Control Display For vehicles with Accessory Control only ACM menu (see ITU Accessory Control ACM menu) not in connection with position 15 not together with Position 16 Only in conjunction with position 1 |
||||||||||
| 18 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 3 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| Only in conjunction with position 1 | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
