Audio-system with CD-changer for BMW 5 Series E34 520i (1990)

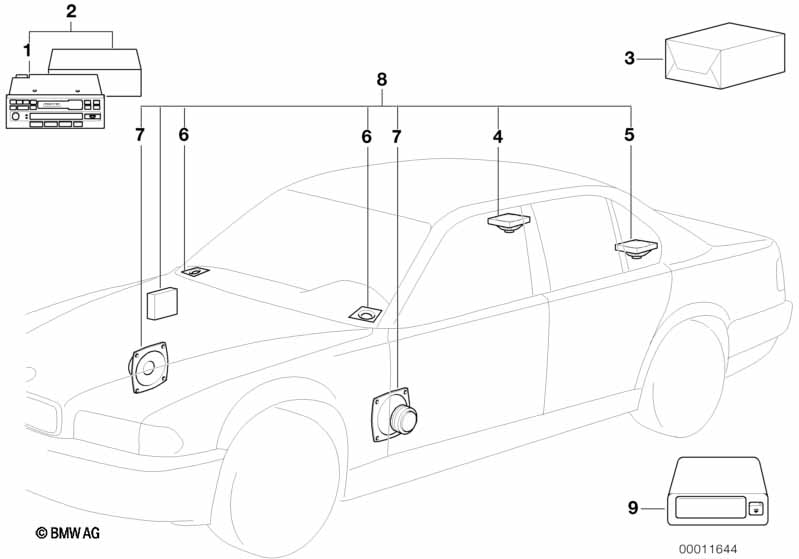

This Audio-system with CD-changer technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Radio Bavaria Mono Digital II | 1 | 65119061281 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria Mono | 1 | 65119058621 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Mono system | X | 65119061061 | Shop at ECS Tuning | ||||||
| 01 | Radio Bavaria C Exclusive | 4-OHM | 1 | 65129061102 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Stereo system 2-channel | 4-OHM | X | 65129061062 | Shop at ECS Tuning | |||||
| -- | Hifi System 2/4-channel | X | 65129061064 | Shop at ECS Tuning | ||||||
| -- | Stereo system 4-channel | 4-OHM | X | 65129061122 | Shop at ECS Tuning | |||||
| only applies to Hi-Fi System 1 | ||||||||||
| 01 | Radio Bavaria Electronic CD II | 1 | 03/1994 | 65129059410 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO HIFI TILL 3/93 |
||||||||||
| 01 | Radio BMW Professional RDS | 03.95=>03.97 | 1 | 65129402062 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter tubing f hifi system | 1 | 82899404829 | ENDED | Shop at ECS Tuning | |||||
| only applies to Stereo System 1 Hi-Fi system 1 |
||||||||||
| 01 | Radio Bavaria C III | 1 | 09/1993 | 65129060612 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio Bavaria C Reverse III | 1 | 09/1993 | 65129060613 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio Bavaria C Reverse RDS | 1 | 09/1993 | 65129060614 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio Bavaria C Business RDS | 1 | 03/1994 | 65129400871 | $972.00 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Reverse RDS | 1 | 01/1996 | 65129402082 | $906.75 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Reverse RDS | 1 | 65129405379 | +core | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Business RDS | 03.94=>05.96 | 1 | 05/1996 | 65129402063 | $812.00 | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Business RDS | 09.97=> | 1 | 01/1996 | 65129410692 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Exch. radio BMW BUSINESS RDS | 1 | 65128379231 | $501.58 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Professional RDS | 03.95=>03.97 | 1 | 65129402062 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Business CD RDS | 1 | 65129402067 | ENDED, +core | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Business CD RDS | 1 | 65129410685 | $1249.92 | +core | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Reverse | 1 | 65129402083 | ENDED, +core | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Radio BMW Professional RDS | 03.97=> | 1 | 65129408268 | $1662.84 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 02 | Radio Bavaria Electronic CD | 1 | 65129061565 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hifi System 2 | BAVARIA EL. CD | 1 | 65129061606 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH COLOR-DEPENDED PARTS |
||||||||||
| only applies to Stereo System 2 Hi-Fi system 2 Conversion kit stereo 1 to stereo 2 Conversion kit Hi-Fi 1 to Hi-Fi 2 |
||||||||||
| 02 | Radio Bavaria C Professional RDS | 1 | 65129400872 | $2577.96 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| ONLY APPLIES TO WIRING SET 17-POLE only applies to Hi-Fi System 1 |
||||||||||
| 02 | Radio Bavaria Electronic CD | 1 | 09/1989 | 65129061565 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter lead | 4-KANAL | 1 | 09/1989 | 65128350007 | $57.17 | ENDED | Shop at ECS Tuning | ||
| -- | Retrofit kit bavaria electronic CD | 1 | 09/1989 | 65129059346 | Shop at ECS Tuning | |||||
| 03 | Conversion kit stereo 1 to stereo 2 | 1 | 65129410546 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hifi System 2 | 1 | 03/1993 | 65129433052 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH COLOR-DEPENDED PARTS |
||||||||||
| 03 | Stereo System 1 | 1 | 09/1989 | 65129061921 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH COLOR-DEPENDED PARTS |
||||||||||
| only applies to Stereo System 1 | ||||||||||
| 04 | SoundModul woofer, mid-range speak+tweet | 160MM, COAXIAL | 1 | 82839404563 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | SoundModul woofer, mid-range speak+tweet | 160MM, COAXIAL | 1 | 82839404564 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO STEREO SYSTEM 1 PARK DISTANCE CONTROL NOT SUITABLE FOR HAND-FREE SET FOR TEL. |
||||||||||
| 08 | Sound Modul system | E32 / E34 ECE | 1 | 82839404300 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Loudspeaker | PDC | 1 | 82839404277 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO STEREO SYSTEM 1 NOT SUITABLE FOR HAND-FREE SET FOR TEL. PARK DISTANCE CONTROL |
||||||||||
| 08 | Sound Modul system | E32 / E34 ECE | 1 | 82839404300 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 09 | BMW Bavaria CD6 Selection | 1 | 03/1994 | 65128355801 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 03/1994 | 65129410485 | ENDED | Shop at ECS Tuning | ||||
| Trunk trim panel | ||||||||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 09 | CD Changer | CD-10 SELEKTION | 1 | 65121392834 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 65129433053 | ENDED | Shop at ECS Tuning | |||||
| Trunk trim panel | ||||||||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 09 | BMW Bavaria CD6 Selection | 1 | 03/1994 | 65128355801 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 03/1994 | 65129410484 | ENDED, +core | Shop at ECS Tuning | ||||
| Trunk trim panel | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
