Audio-system with CD-changer for BMW 3 Series E36 320i (1995)

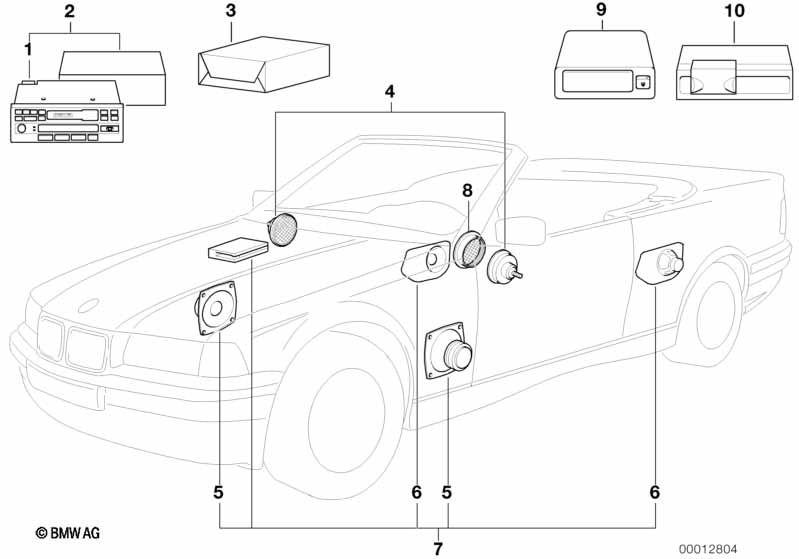

This Audio-system with CD-changer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Radio BMW Reverse RDS | 1 | 09/1996 | 65129402082 | $906.75 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with Stereo System 1 Hi-Fi System 1 Radio operating instructions |
||||||||||
| 01 | Radio BMW Business CD RDS | 1 | 09/1997 | 65129402067 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with Stereo System 1 Hi-Fi System 1 Radio operating instructions |
||||||||||
| 01 | Radio BMW Reverse | 1 | 65129402083 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with Stereo System 1 Hi-Fi System 1 Radio operating instructions |
||||||||||
| 01 | Radio BMW Professional RDS | 03.95=>03.97 | 1 | 09/1991 | 03/1997 | 65129402062 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with Stereo System 1 Hi-Fi System 1 Radio operating instructions |
||||||||||
| 01 | Radio BMW Business RDS | 03.94=>05.96 | 1 | 09/1993 | 05/1996 | 65129402063 | $812.00 | Shop at ECS Tuning | ||
| only in conjunction with Stereo System 1 Hi-Fi System 1 Radio operating instructions |
||||||||||
| 02 | Radio Bavaria C Professional RDS | 1 | 65129400872 | $2577.96 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with Stereo System 2 Hi-Fi System 2 Conversion kit stereo 1 to stereo 2 Conversion kit Hi-Fi 1 to Hi-Fi 2 Radio operating instructions |
||||||||||
| 03 | Stereo System 1 | 1 | 65129401891 | ENDED, +core | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH DOOR CABLE HARNESSES TILL 9/93 REAR LOUDSPEAKER COVER LOUDSPEAKER |
||||||||||
| only applies to Stereo System as replacement for stereo tweeter Sound Modul system |
||||||||||
| 04 | Sound Modul system | SCHWARZ | 1 | 09/1994 | 82839405335 | $160.70 | ENDED, +core | Shop at ECS Tuning | ||
| as required, with colour-matched finisher (Item 8) |
||||||||||
| only applies to Stereo System as low-cost sound improvement |
||||||||||
| 06 | SoundModul woofer, mid-range speak+tweet | 130MM, COAXIAL | 2 | 82839405027 | ENDED, +core | Shop at ECS Tuning | ||||
| only applies to BMW radios (item 1) Stereo System 1 not suitable for telephone ex assembly line with hands- free facility telephone provisions with hands-free facility retrofit telephone with hands-free facility 84 64 9 404 725 LHD retrofit telephone with hands-free facility 84 64 9 405 011 RHD |
||||||||||
| 07 | Sound Modul system | E36/C ECE | 1 | 09/1994 | 82839405023 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Sound Modul system | E36/C ECE | 1 | 09/1994 | 82839405023 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with item 4 | ||||||||||
| only applies to BMW radios (item 1) Stereo System 1 telephone ex assembly line with hands- free facility telephone provisions with hands-free facility retrofit telephone with hands-free facility 84 64 9 404 725 LHD retrofit telephone with hands-free facility 84 64 9 405 011 RHD |
||||||||||
| 07 | Sound Modul system | E36/C ECE | 1 | 09/1994 | 82839405023 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Changeover module | 1 | 09/1994 | 82899406417 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Sound Modul system | E36/C ECE | 1 | 09/1994 | 82839405023 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Changeover module | 1 | 09/1994 | 82899406417 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with item 4 | ||||||||||
| only applies to Stereo System Sound Modul system |
||||||||||
| 08 | Cover Loudspeaker | BEIGE | 2 | 09/1994 | 82899405336 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with item 4 | ||||||||||
| 08 | Cover Loudspeaker | GRAU | 2 | 09/1994 | 82899405337 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with item 4 | ||||||||||
| 08 | Cover Loudspeaker | SANDGRAU | 2 | 09/1994 | 82899405338 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with item 4 | ||||||||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 09 | BMW 6 CD Changer P | 1 | 03/1994 | 65128361058 | $766.82 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 03/1994 | 82859403109 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 09 | BMW 6 CD Changer P | 1 | 03/1994 | 65128361058 | $766.82 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 03/1994 | 82859403108 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 10 | RP REMAN BMW 6 CD changer, A | 1 | 65128361266 | $520.33 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 65129404086 | ENDED, +core | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS RADIO BMW BUSINESS RDS RADIO BMW PROFESSIONAL RDS |
||||||||||
| 10 | RP REMAN BMW 6 CD changer, A | 1 | 65128361266 | $520.33 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Retrofit kit, CD-changer | 1 | 65129404085 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
