Retrofit kit USB/iPod connection for BMW 3 Series E90 330d (2008)

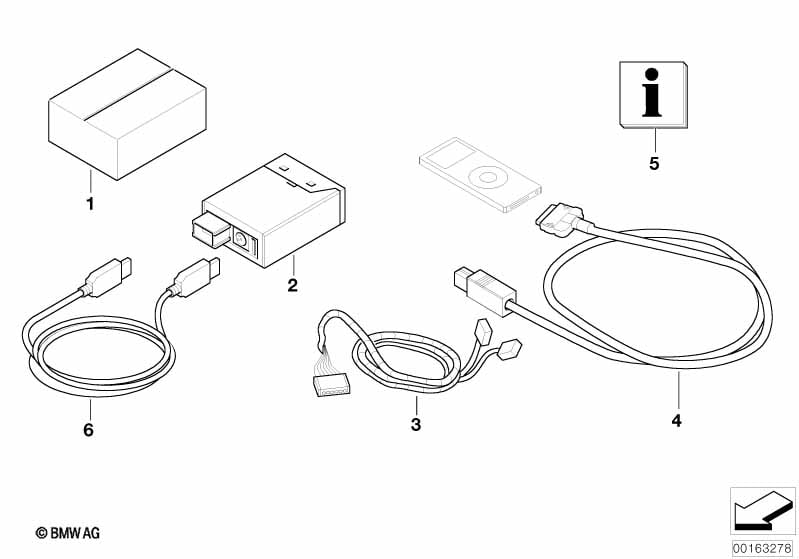

This Retrofit kit USB/iPod connection technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Suitable for Apple iPod with docking connection, Apple iPhone, USB sticks, USB MP3 players and USB slot cards. Display of artist, album and title in radio display panel. For vehicles with On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S602A=No S606A=No S609A=No S663A=No |
||||||||
| 01 | Retrofit kit USB/iPOD interface | 1 | 65410427467 | ENDED | Shop at ECS Tuning | |||||
| 02 | Interface | 1 | 65410007392 | ENDED | Shop at ECS Tuning | |||||
| 03 | Adapter lead | 1 | 61120428382 | $32.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cable | 1 | 65112154178 | $50.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Operating instructions | 1 | 01290428691 | ENDED | Shop at ECS Tuning | |||||
| 06 | USB cable adapter | 1 | 61120429721 | $7.00 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
