Retrofit, fine wood trim, walnut root for BMW 3 Series E90 LCI 325i (2009)

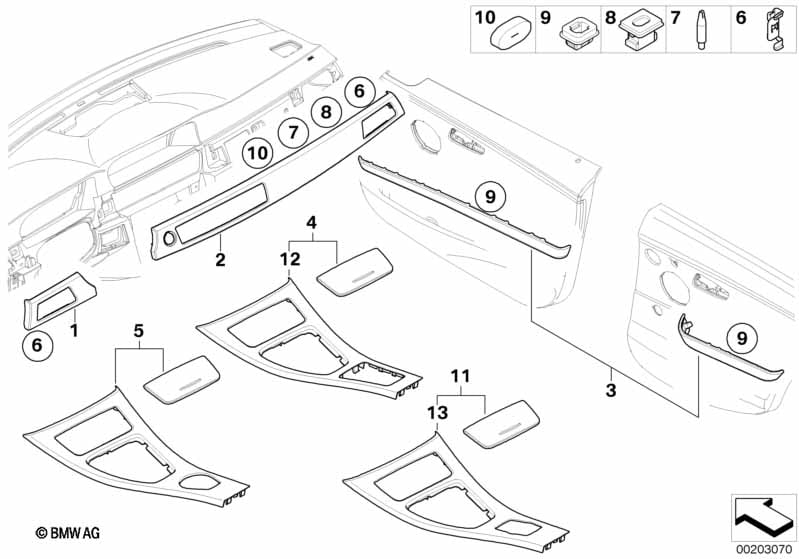

This Retrofit, fine wood trim, walnut root technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, dashboard, nutwood, right | NUSSBAUMWURZEL | 1 | 09/2008 | 51456985539 | +core | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, nutwood, left | NUSSBAUMWURZEL | 1 | 09/2008 | 51456985541 | +core | Shop at ECS Tuning | |||
| 03 | Set of decorative strips, nutwood | NUSSBAUM WURZEL | 1 | 09/2008 | 51419173688 | $563.86 | Shop at ECS Tuning | |||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 04 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170874 | Shop at ECS Tuning | ||||
| 06 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Threaded bolt | D=6X30 | 7 | 51458266813 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Plug-in retainer | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 09 | Plug-in retainer | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 10 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=Yes S606A=Yes S609A=No |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=Yes S606A=No S609A=Yes |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=No S606A=Yes S609A=Yes |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 11 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 325i Retrofit, fine wood trim, walnut root?
- This technical diagram illustrates the Retrofit, fine wood trim, walnut root within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 325i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Cover, dashboard, nutwood, right (Part #51456985539).
- Which models use the hardware listed in this Retrofit, fine wood trim, walnut root?
- The hardware and components featured in the Retrofit, fine wood trim, walnut root are specific to the 3 Series E90 LCI 325i produced during 2009. These technical specifications ensure that parts like the Cover, dashboard, nutwood, right (51456985539) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, fine wood trim, walnut root assembly?
- Each item in the Retrofit, fine wood trim, walnut root corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 325i, you can identify the Cover, dashboard, nutwood, right by locating its position on the schematic, which then links to the official BMW part number 51456985539 for the Retrofitting / conversion / accessories section.
