Retrof.,alumin. decor strips,titanium II for BMW 3 Series E46 318i (2001)

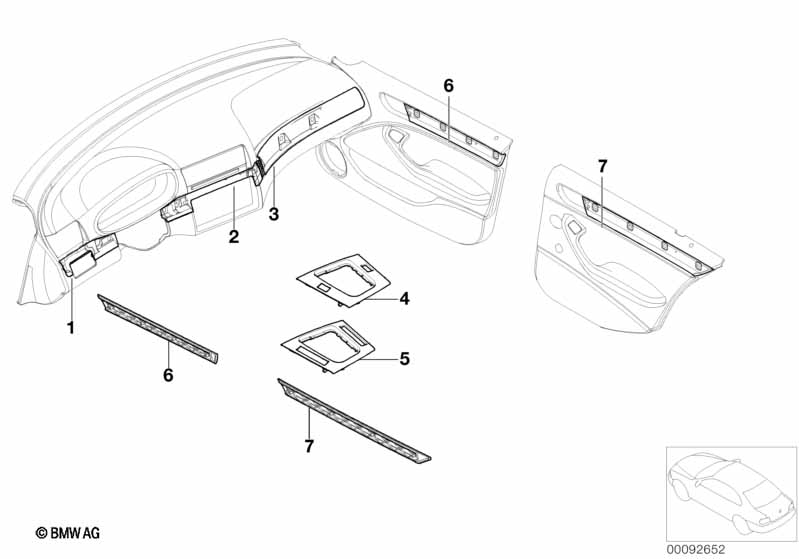

This Retrof.,alumin. decor strips,titanium II technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 1.0 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Decor strip,titanium II,instr. panel lft | TITAN II | 1 | 51457046965 | $19.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Decor strip,titan. II,instr.panel center | TITAN II | 1 | 51457046969 | $24.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Decor strip,titan. II,instr. panel right | TITAN II | 1 | 51457046967 | $29.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Insert | ROT | 7 | 51458266814 | $0.85 | Shop at ECS Tuning | ||||
| 04 | Depositing box bottom panel | TITAN II | 1 | 51167052066 | $34.76 | Shop at ECS Tuning | ||||
| For vehicles with Window lifts,electric,front/rear |
S411A=Yes |
|||||||||
| 05 | Depositing box bottom panel | TITAN II | 1 | 51167052068 | $35.75 | Shop at ECS Tuning | ||||
| 06 | Decorative strip, door front left | TITAN II | 1 | 51457047161 | $24.50 | Shop at ECS Tuning | ||||
| 06 | Decorative strip, door front right | TITAN II | 1 | 51457047162 | $24.50 | Shop at ECS Tuning | ||||
| 07 | Decorative strip, door rear left | TITAN II | 1 | 51457047165 | $24.50 | Shop at ECS Tuning | ||||
| 07 | Decorative strip, door rear right | TITAN II | 1 | 51457047166 | $24.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
