Retrofit, fine wood trim, walnut root for BMW 5 Series E39 523i (2000)

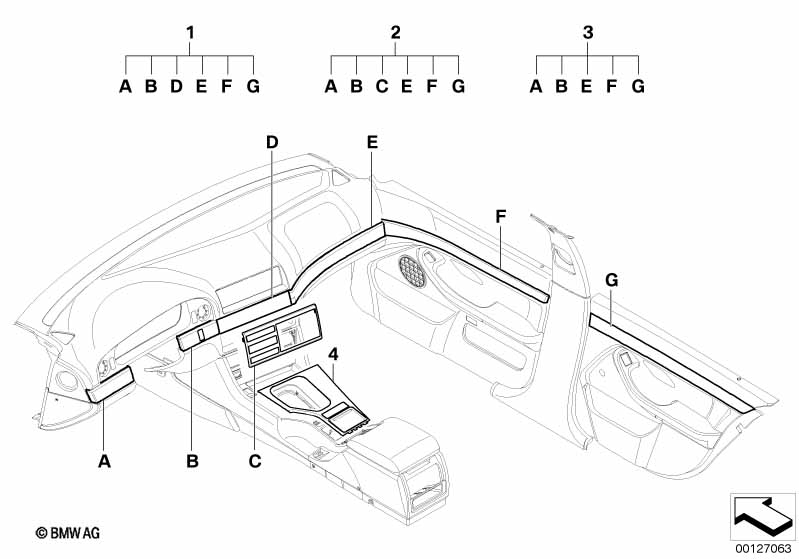

This Retrofit, fine wood trim, walnut root technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Shift knob/selector lever handle see main group 25 For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 1.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Set of wooden covers "Nussbaum" | 1 | 51418200707 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 01 | Set of wooden covers "Nussbaum" | 1 | 09/1997 | 51418200709 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor |
=Yes |
|||||||||
| 02 | Set of wooden covers "Nussbaum" | 1 | 09/2000 | 51418209882 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) and On-board monitor |
S265A=Yes =Yes |
|||||||||
| 02 | Set of wooden covers "Nussbaum" | 1 | 09/1997 | 09/2000 | 51418209884 | ENDED | Shop at ECS Tuning | |||
| 04 | Base of center console | NUSSBAUM | 1 | 51168209854 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Center console insert, centre | SCHWARZ | 1 | 51168256298 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
