Retrofit:oddments tray under load. floor for BMW 3 Series E90 LCI 320d (2011)

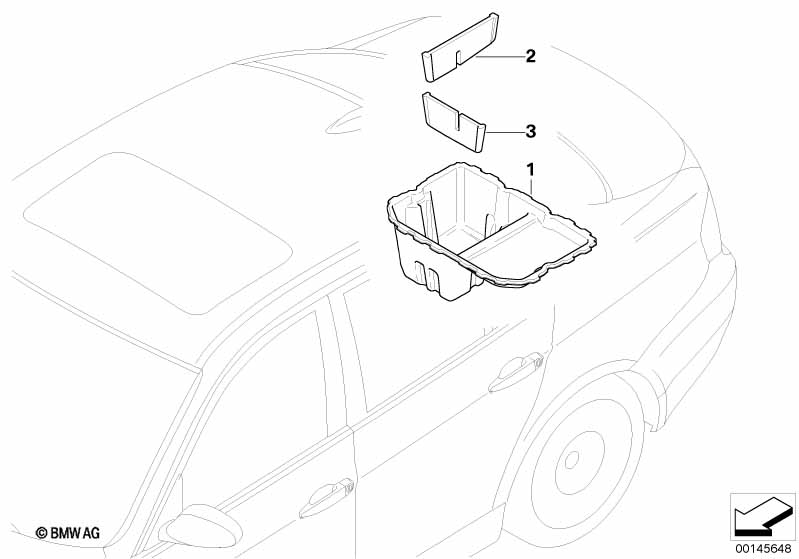

This Retrofit:oddments tray under load. floor technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Dividing element long | 1 | 51477146048 | $7.02 | Shop at ECS Tuning | |||||
| 03 | Dividing element short | 1 | 51477146050 | $6.22 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Retrofit:oddments tray under load. floor?
- This technical diagram illustrates the Retrofit:oddments tray under load. floor within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Dividing element long (Part #51477146048).
- Which models use the hardware listed in this Retrofit:oddments tray under load. floor?
- The hardware and components featured in the Retrofit:oddments tray under load. floor are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Dividing element long (51477146048) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit:oddments tray under load. floor assembly?
- Each item in the Retrofit:oddments tray under load. floor corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Dividing element long by locating its position on the schematic, which then links to the official BMW part number 51477146048 for the Retrofitting / conversion / accessories section.
