Loudspeaker front/rear for BMW 5 Series E34 525td (1995)

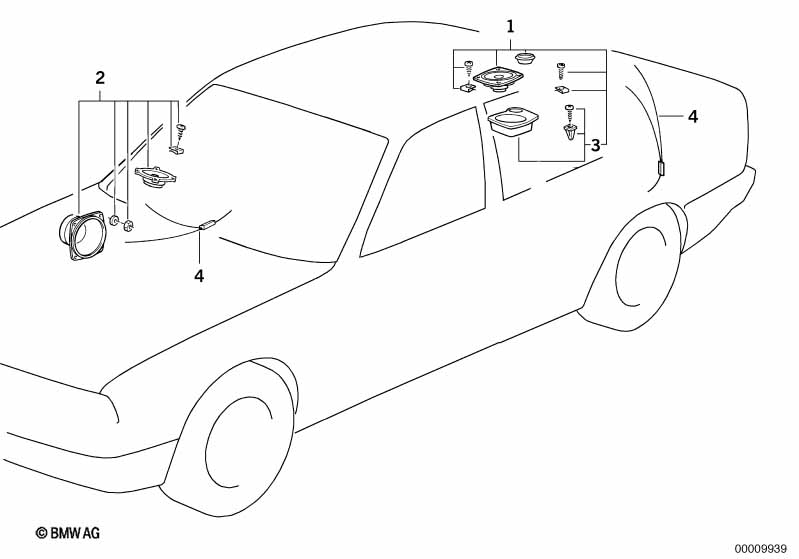

This Loudspeaker front/rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Woofer | MB QUART | 1 | 82899402269 | ENDED | Shop at ECS Tuning | ||||
| 01 | Tweeter | MB QUART | 1 | 82899402270 | ENDED | Shop at ECS Tuning | ||||
| 02 | Retrofit kit, loudspeaker, front | PERFORMANCE | 1 | 82119410549 | ENDED | Shop at ECS Tuning | ||||
| 02 | Tweeter | MB QUART | 1 | 82899402270 | ENDED | Shop at ECS Tuning | ||||
| 02 | MID-range loudspeaker | MB QUART | 1 | 82899402272 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 03 | Set mounting parts | PERFORMANCE | 1 | 82119410550 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set frequency-crossover netw. | PERFORMANCE | 1 | 82119410660 | ENDED | Shop at ECS Tuning | ||||
| 04 | Frequency-crossover netw. | MB QUART | 1 | 82899402273 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
