BMW Subwoofer for BMW 3 Series E46 318Ci (2003)

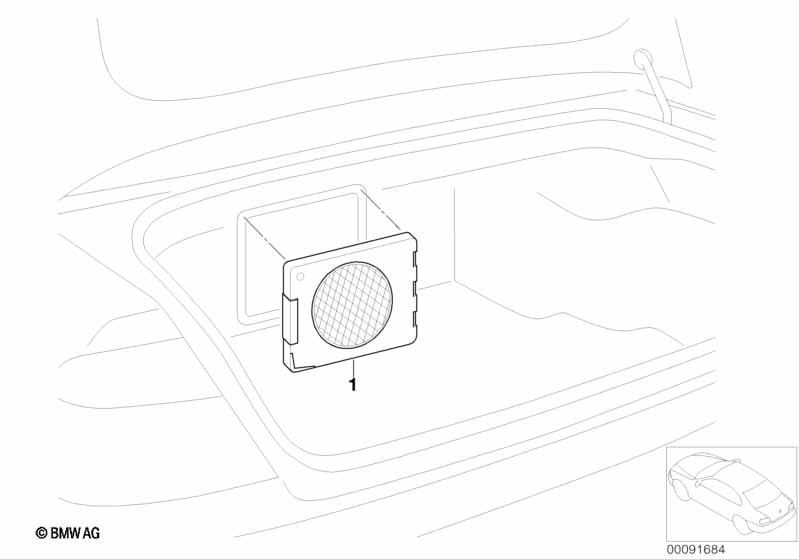

This BMW Subwoofer technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to original BMW radios | |||||||||
| For vehicles with Ski bag and Hi-Fi System Harman Kardon and HiFi speaker system |
S464A=No S674A=No S676A=No |
|||||||||
| 01 | Subwoofer | E46 CABRIO | 1 | 82830027787 | $905.00 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cassette subwoofer | 1 | 72608268954 | $41.48 | +core | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system and Ski bag |
S674A=No S676A=No S464A=Yes |
|||||||||
| 01 | Subwoofer | E46 CABRIO | 1 | 82830027787 | $905.00 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci BMW Subwoofer?
- This technical diagram illustrates the BMW Subwoofer within the Retrofitting / conversion / accessories group for the 3 Series E46 318Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Subwoofer (Part #82830027787).
- Which models use the hardware listed in this BMW Subwoofer?
- The hardware and components featured in the BMW Subwoofer are specific to the 3 Series E46 318Ci produced during 2003. These technical specifications ensure that parts like the Subwoofer (82830027787) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW Subwoofer assembly?
- Each item in the BMW Subwoofer corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the Subwoofer by locating its position on the schematic, which then links to the official BMW part number 82830027787 for the Retrofitting / conversion / accessories section.
