Sound Modul system for BMW 5 Series E39 530i (2003)

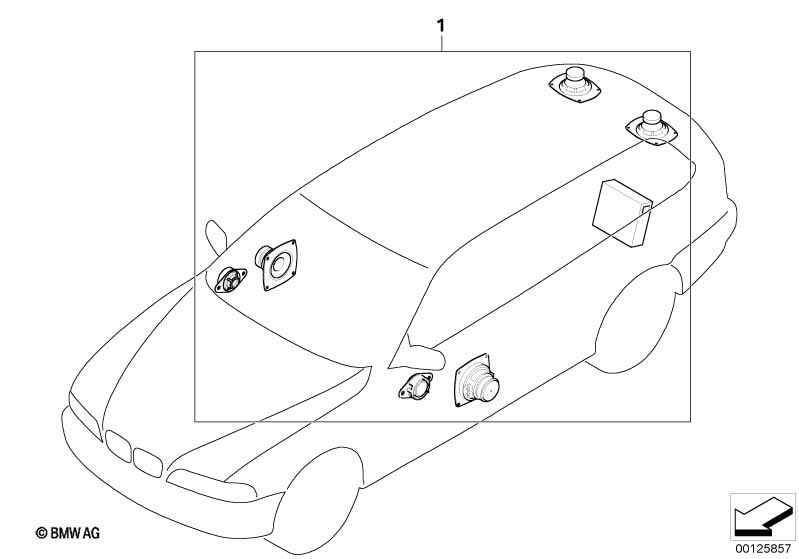

This Sound Modul system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important. Check that the switch module has been installed in the vehicle first. A switch-over module is only required in cars with a 17-pin radio connection plug (e.g. up to max. 09/01) with SA telephone! For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=No S676A=No |
||||||||
| 01 | Sound Module | E39/2 | 1 | 09/2001 | 82830140507 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
