Sound Modul system for BMW 3 Series E46 320Ci (2001)

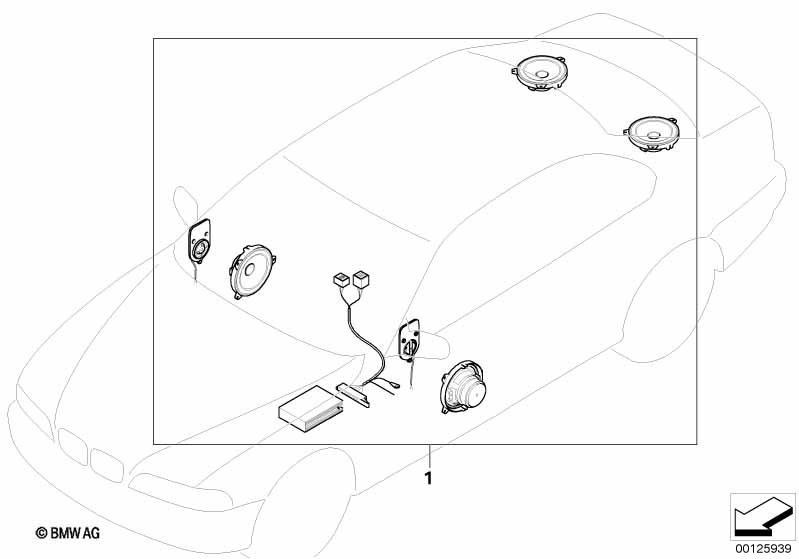

This Sound Modul system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sound Modul system only for vehicles with BMW Stereo system and only with BMW Radios For vehicles with Hi-Fi System Harman Kardon and HiFi speaker system |
S674A=No S676A=No |
||||||||
| 01 | Sound Modul system | E46/2 | 1 | 82830300867 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Ci Sound Modul system?
- This technical diagram illustrates the Sound Modul system within the Retrofitting / conversion / accessories group for the 3 Series E46 320Ci produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Sound Modul system (Part #82830300867).
- Which models use the hardware listed in this Sound Modul system?
- The hardware and components featured in the Sound Modul system are specific to the 3 Series E46 320Ci produced during 2001. These technical specifications ensure that parts like the Sound Modul system (82830300867) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound Modul system assembly?
- Each item in the Sound Modul system corresponds to the numbered list below the illustration. For the 3 Series E46 320Ci, you can identify the Sound Modul system by locating its position on the schematic, which then links to the official BMW part number 82830300867 for the Retrofitting / conversion / accessories section.
