Radio Blaupunkt Hamburg MP68 for BMW 3 Series E46 316ti (2004)

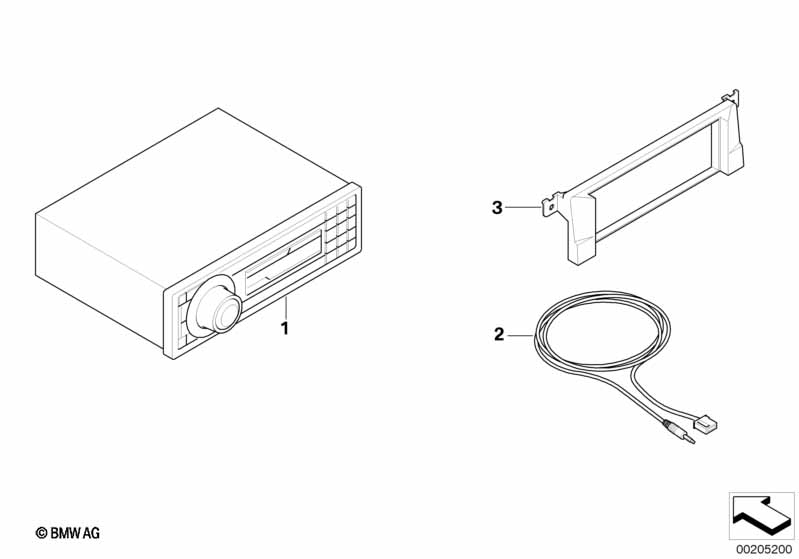

This Radio Blaupunkt Hamburg MP68 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Multifunction f steering wheel and Navigation system Business and Navigation system Professional and CD changer for 6 CDs and Hi-Fi System Harman Kardon and HiFi speaker system and HiFi System Professional DSP |
S249A=Yes S606A=No S609A=No S672A=No S674A=No S676A=No S677A=No |
|||||||||
| 01 | Radio Blaupunkt full stereo | BASIC | 1 | 09/2002 | 65902156186 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Radio trim with lateral offset | BASISTEIL | 1 | 09/2002 | 65902156215 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Adapter cable BMW | AB 09/02 | 1 | 09/2002 | 65902156216 | ENDED | Shop at ECS Tuning | |||
| -- | Adapter cable BMW ISO - AG | BASISTEIL | 1 | 09/2002 | 65902156728 | Shop at ECS Tuning | ||||
| -- | Adapter cable BMW F. antenna | BASISTEIL | 1 | 09/2002 | 65902156729 | ENDED | Shop at ECS Tuning | |||
| -- | Adapter cable BMW 17-pin plug | FÜR FZG.MIT MFL | 1 | 09/2002 | 65902156730 | ENDED | Shop at ECS Tuning | |||
| -- | Adapter cable BMW Interface MFW | FÜR FZG.MIT MFL | 1 | 09/2002 | 65902156731 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Multifunction f steering wheel and Navigation system Business and Navigation system Professional and CD changer for 6 CDs and Hi-Fi System Harman Kardon and HiFi speaker system and HiFi System Professional DSP |
S249A=No S606A=No S609A=No S672A=No S674A=No S676A=No S677A=No |
|||||||||
| 01 | Radio Blaupunkt full stereo | BASIC | 1 | 09/2002 | 65902156186 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Radio trim with lateral offset | BASISTEIL | 1 | 09/2002 | 65902156215 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Adapter cable BMW | AB 09/02 | 1 | 09/2002 | 65902156216 | ENDED | Shop at ECS Tuning | |||
| -- | Adapter cable BMW ISO - AG | BASISTEIL | 1 | 09/2002 | 65902156728 | Shop at ECS Tuning | ||||
| -- | Adapter cable BMW F. antenna | BASISTEIL | 1 | 09/2002 | 65902156729 | ENDED | Shop at ECS Tuning | |||
| 02 | AUX adapter cable, BMW, with 3.5 mm jack | FÜR MP3 / I-POD | 1 | 65902156732 | ENDED | Shop at ECS Tuning | ||||
| 03 | Radio trim, centered | TRAFFIC PRO/E46 | 1 | 65900390317 | $59.50 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316ti Radio Blaupunkt Hamburg MP68?
- This technical diagram illustrates the Radio Blaupunkt Hamburg MP68 within the Retrofitting / conversion / accessories group for the 3 Series E46 316ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Radio Blaupunkt full stereo (Part #65902156186).
- Which models use the hardware listed in this Radio Blaupunkt Hamburg MP68?
- The hardware and components featured in the Radio Blaupunkt Hamburg MP68 are specific to the 3 Series E46 316ti produced during 2004. These technical specifications ensure that parts like the Radio Blaupunkt full stereo (65902156186) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio Blaupunkt Hamburg MP68 assembly?
- Each item in the Radio Blaupunkt Hamburg MP68 corresponds to the numbered list below the illustration. For the 3 Series E46 316ti, you can identify the Radio Blaupunkt full stereo by locating its position on the schematic, which then links to the official BMW part number 65902156186 for the Retrofitting / conversion / accessories section.
