Cargo area reversible mat for BMW 7 Series F02 LCI 740Li (2015)

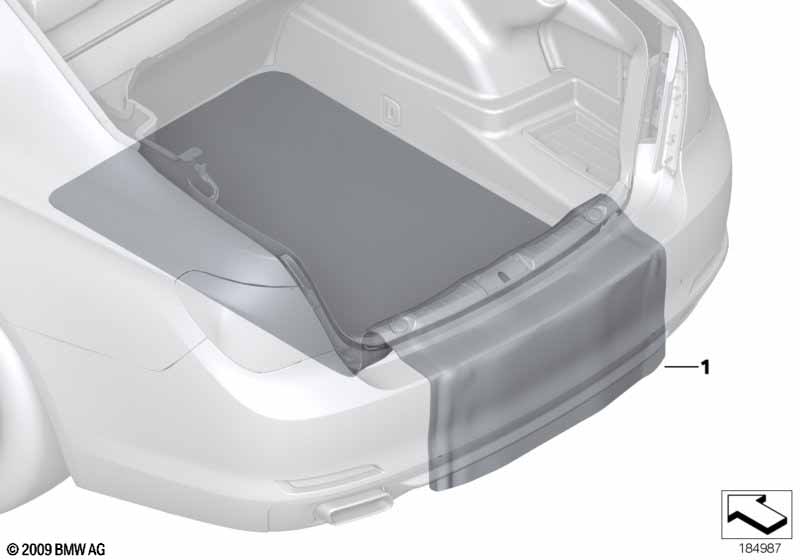

This Cargo area reversible mat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Expanded rear climate control |
S4NFA=No |
||||||||
| 01 | Cargo area reversible mat | 1 | 51472149226 | $211.95 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Cargo area reversible mat?
- This technical diagram illustrates the Cargo area reversible mat within the Retrofitting / conversion / accessories group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Cargo area reversible mat (Part #51472149226).
- Which models use the hardware listed in this Cargo area reversible mat?
- The hardware and components featured in the Cargo area reversible mat are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Cargo area reversible mat (51472149226) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cargo area reversible mat assembly?
- Each item in the Cargo area reversible mat corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Cargo area reversible mat by locating its position on the schematic, which then links to the official BMW part number 51472149226 for the Retrofitting / conversion / accessories section.
