Luggage compartment organizer for BMW 3 Series F34 GT 320d (2015)

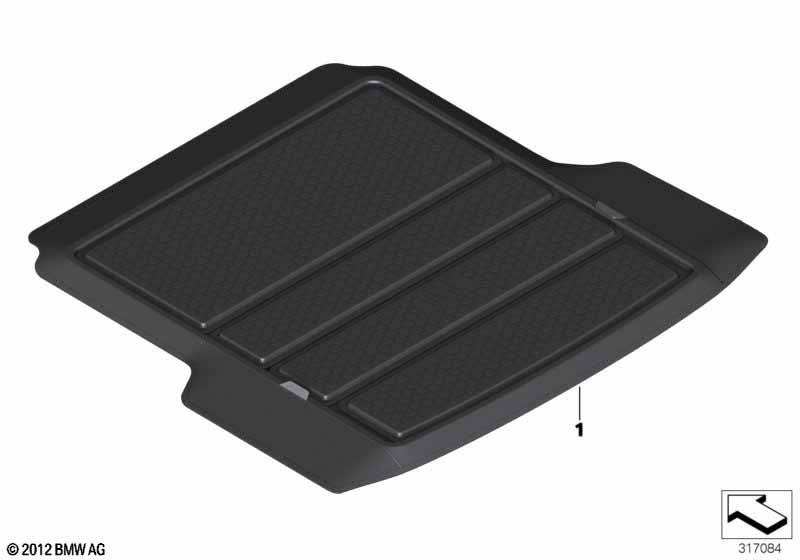

This Luggage compartment organizer technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luggage compartment organizer | F34 | 1 | 51472338894 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
