Retrofit, roof rail for BMW MINI F56 JCW (2020)

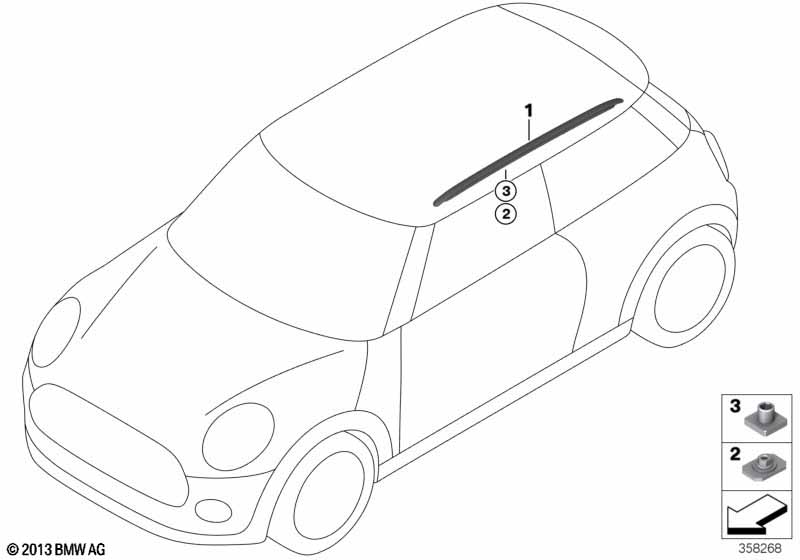

This Retrofit, roof rail technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Installation instructions available through ASAP For vehicles with Roof railing |
S386A=No |
||||||||
| 01 | Roof railing, left | 1 | 51137331931 | Shop at ECS Tuning | ||||||
| 01 | Roof railing, right | 1 | 51137331932 | Shop at ECS Tuning | ||||||
| 02 | Base, roof railing | 8 | 51137336867 | Shop at ECS Tuning | ||||||
| 03 | Alignment element | 8 | 51137351502 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Retrofit, roof rail?
- This technical diagram illustrates the Retrofit, roof rail within the Retrofitting / conversion / accessories group for the MINI F56 JCW produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Roof railing, left (Part #51137331931).
- Which models use the hardware listed in this Retrofit, roof rail?
- The hardware and components featured in the Retrofit, roof rail are specific to the MINI F56 JCW produced during 2020. These technical specifications ensure that parts like the Roof railing, left (51137331931) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, roof rail assembly?
- Each item in the Retrofit, roof rail corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Roof railing, left by locating its position on the schematic, which then links to the official BMW part number 51137331931 for the Retrofitting / conversion / accessories section.
