Rubber mat for BMW 7 Series F02 730Li (2012)

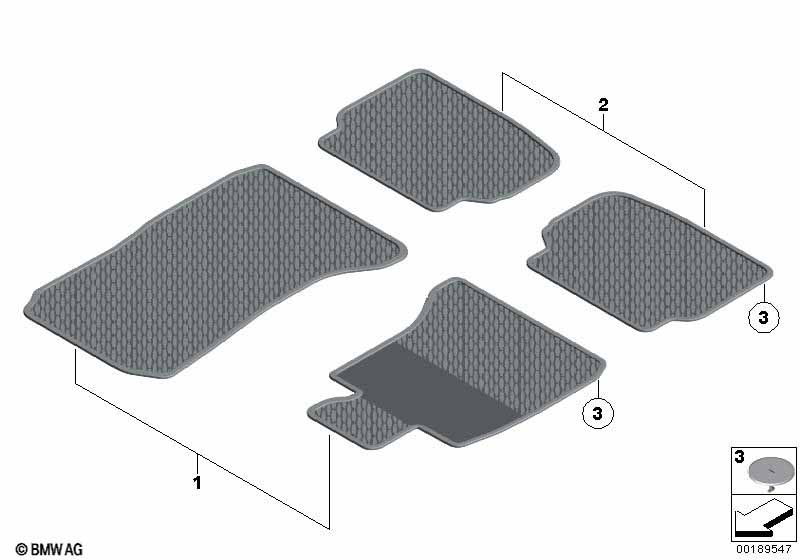

This Rubber mat technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Floor mats, all-weather, rear | SW | 1 | 51472409277 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hook&loop element with bayonet fastener | D62MM/L16MM | 4 | 07149166608 | $2.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 730Li Rubber mat?
- This technical diagram illustrates the Rubber mat within the Retrofitting / conversion / accessories group for the 7 Series F02 730Li produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Floor mats, all-weather, rear (Part #51472409277).
- Which models use the hardware listed in this Rubber mat?
- The hardware and components featured in the Rubber mat are specific to the 7 Series F02 730Li produced during 2012. These technical specifications ensure that parts like the Floor mats, all-weather, rear (51472409277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rubber mat assembly?
- Each item in the Rubber mat corresponds to the numbered list below the illustration. For the 7 Series F02 730Li, you can identify the Floor mats, all-weather, rear by locating its position on the schematic, which then links to the official BMW part number 51472409277 for the Retrofitting / conversion / accessories section.
