Retrofit trim grill for BMW 5 Series E60 LCI 535d (2009)

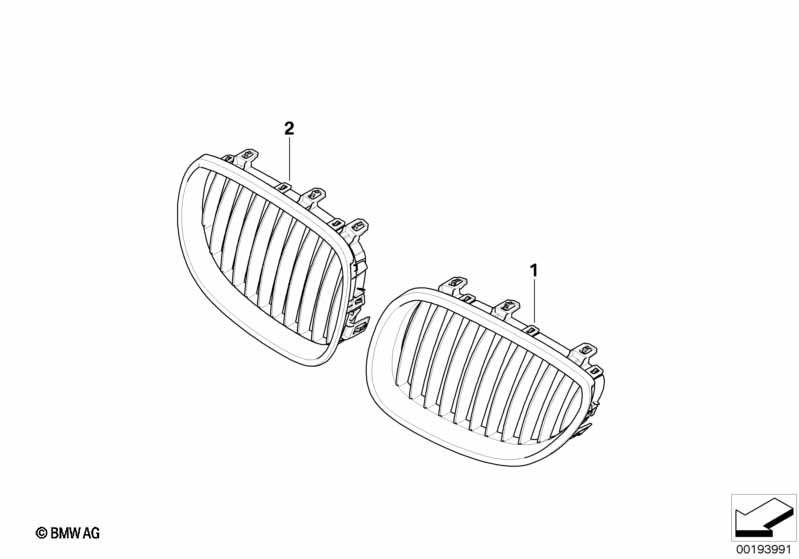

This Retrofit trim grill technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Trim ring, black | ||||||||||
| 01 | Trim grill, high-gloss black, front lft | M PERFORMANCE | 1 | 51712155447 | $79.50 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Trim grill, high-gloss black, front rgt | M PERFORMANCE | 1 | 51712155446 | $79.50 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 535d Retrofit trim grill?
- This technical diagram illustrates the Retrofit trim grill within the Retrofitting / conversion / accessories group for the 5 Series E60 LCI 535d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Trim grill, high-gloss black, front lft (Part #51712155447).
- Which models use the hardware listed in this Retrofit trim grill?
- The hardware and components featured in the Retrofit trim grill are specific to the 5 Series E60 LCI 535d produced during 2009. These technical specifications ensure that parts like the Trim grill, high-gloss black, front lft (51712155447) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit trim grill assembly?
- Each item in the Retrofit trim grill corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 535d, you can identify the Trim grill, high-gloss black, front lft by locating its position on the schematic, which then links to the official BMW part number 51712155447 for the Retrofitting / conversion / accessories section.
