M Performance att.parts front spoiler for BMW 3 Series E91 325d (2008)

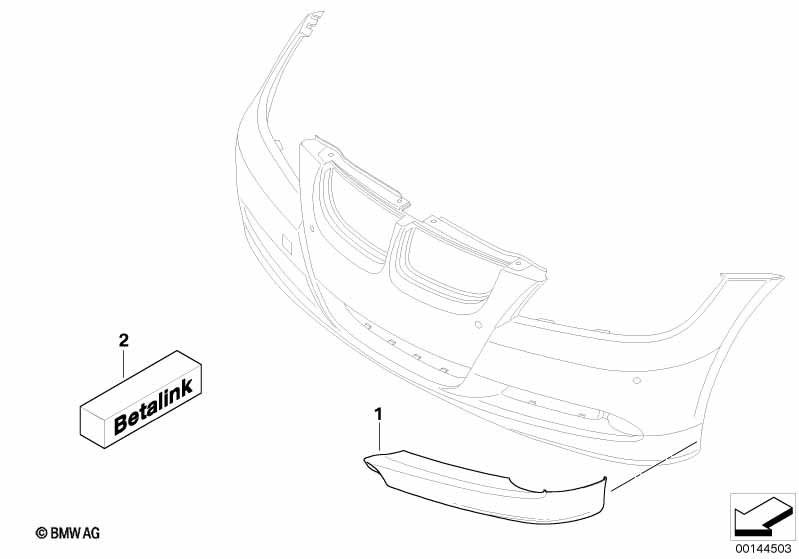

This M Performance att.parts front spoiler technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. For vehicles with Aerodynamics components for M Package and Aerodynamics package |
SZE1A=No SZE3A=No |
||||||||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=Yes S715A=Yes |
|||||||||
| 01 | Mounted part front apron on right | CARBON 245G/M² | 1 | 01/2006 | 51190396346 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Mounted part front apron on left | CARBON 245G/M² | 1 | 01/2006 | 51190396348 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=Yes S715A=No |
|||||||||
| 01 | Mounted part front apron on right | CARBON 245G/M² | 1 | 01/2006 | 51190396346 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Mounted part front apron on left | CARBON 245G/M² | 1 | 01/2006 | 51190396348 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=No S715A=Yes |
|||||||||
| 01 | Mounted part front apron on right | CARBON 245G/M² | 1 | 01/2006 | 51190396346 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Mounted part front apron on left | CARBON 245G/M² | 1 | 01/2006 | 51190396348 | $379.95 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
