M Performance aerodynamics acc.parts for BMW 3 Series E90 325i (2005)

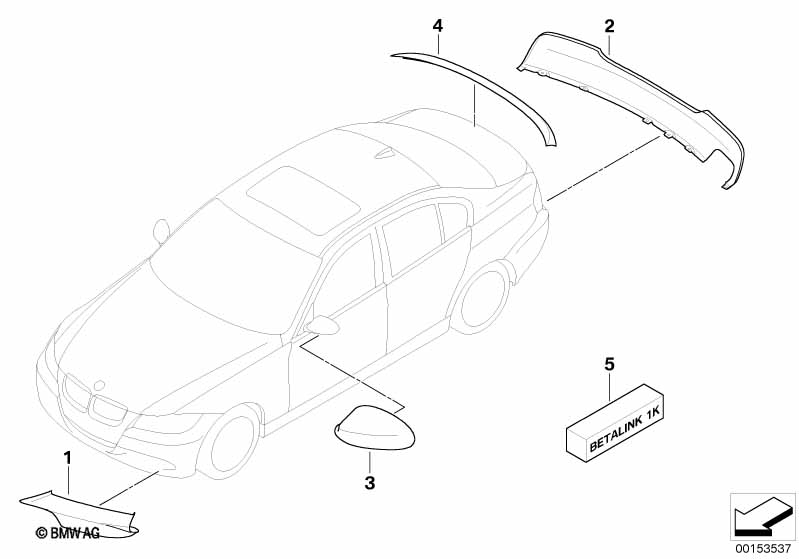

This M Performance aerodynamics acc.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. It is recommended that the attached parts be installed in conjunction with an original BMW rear spoiler, as this improves the aerodynamics. |
|||||||||
| For vehicles with M Aerodynamics package and M Sports package |
S715A=Yes P337A=Yes |
|||||||||
| 01 | Mounted part front apron on right | CARBON 245G/M² | 1 | 51190404056 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Mounted part front apron on left | CARBON 245G/M² | 1 | 51190404057 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex head screw | ST 4,8X18 SW8 | 1 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package and M Sports package |
S715A=Yes P337A=No |
|||||||||
| 01 | Mounted part front apron on right | CARBON 245G/M² | 1 | 51190404056 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Mounted part front apron on left | CARBON 245G/M² | 1 | 51190404057 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex head screw | ST 4,8X18 SW8 | 1 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package and M Sports package |
S715A=Yes P337A=Yes |
|||||||||
| 02 | Trim diffuser | CARBON | 1 | 51120404941 | $1125.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Aerodynamics package and M Sports package |
S715A=Yes P337A=No |
|||||||||
| 02 | Trim diffuser | CARBON | 1 | 51120404941 | $1125.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Rear spoiler |
SZE4A=No |
|||||||||
| 04 | Rear spoiler, carbon | 1 | 51710411575 | $518.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
