M Performance rear spoiler for BMW 3 Series E92 330i (2010)

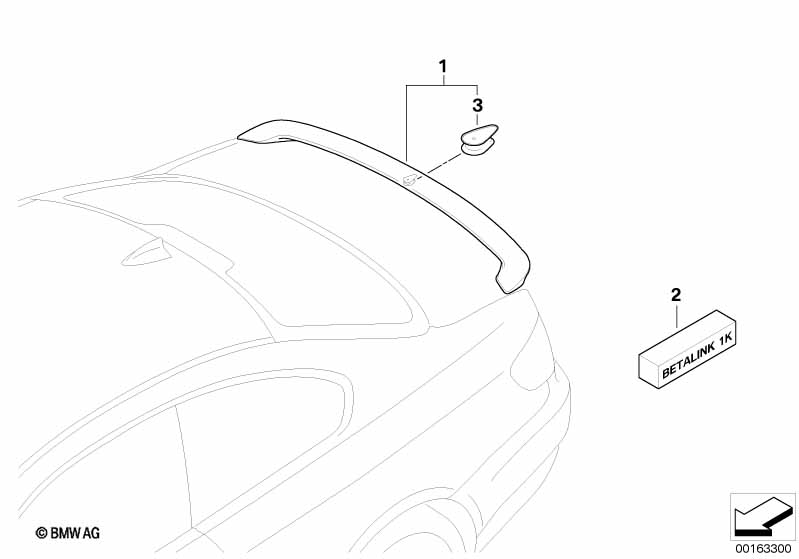

This M Performance rear spoiler technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Trunk lid spoiler, primed | 1 | 03/2008 | 51710443130 | $322.95 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 03/2008 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Trunk lid spoiler, painted | 1 | 51710443131 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 02 | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | Adapter for spoiler, center, primed | 1 | 51710429176 | $6.25 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
