Impact guard strips, side for BMW 1 Series E87 LCI 130i (2011)

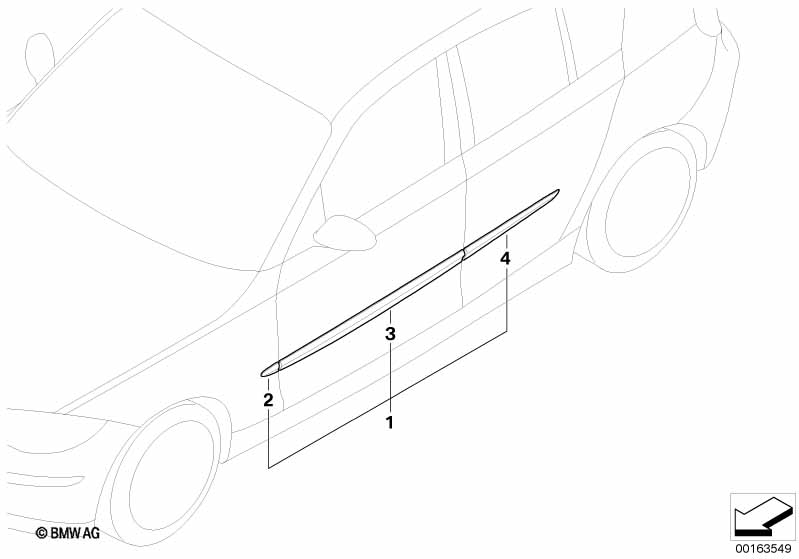

This Impact guard strips, side technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 130i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding rocker panels, doors | 1 | 51120419928 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Impact strip, side panel, front right | 1 | 51120419922 | $36.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Impact strip, side panel, front left | 1 | 51120419923 | $36.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Impact strip, door, front right | 1 | 51120419924 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Impact strip, door, front left | 1 | 51120419925 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Moulding door rear right | 1 | 51120419926 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Moulding door rear left | 1 | 51120419927 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
