Impact guard strips, side for BMW 1 Series E88 118i (2013)

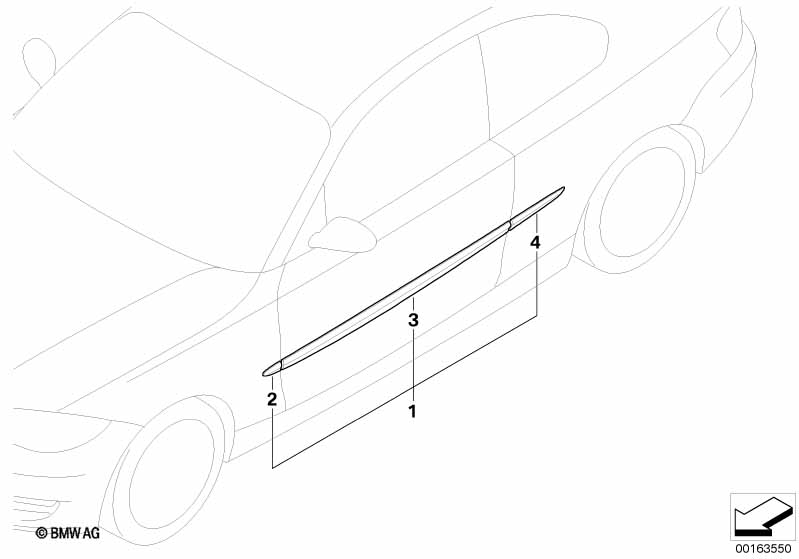

This Impact guard strips, side technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding rocker panels, doors | 1 | 51120429836 | $291.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Impact strip, side panel, front right | 1 | 51120419922 | $36.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Impact strip, side panel, front left | 1 | 51120419923 | $36.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Molding, door right | 1 | 51120429832 | $73.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Molding, door left | 1 | 51120429833 | $73.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Moulding fender rear right | 1 | 51120429834 | $46.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Moulding fender rear left | 1 | 51120429835 | $46.00 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 118i Impact guard strips, side?
- This technical diagram illustrates the Impact guard strips, side within the Retrofitting / conversion / accessories group for the 1 Series E88 118i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Moulding rocker panels, doors (Part #51120429836).
- Which models use the hardware listed in this Impact guard strips, side?
- The hardware and components featured in the Impact guard strips, side are specific to the 1 Series E88 118i produced during 2013. These technical specifications ensure that parts like the Moulding rocker panels, doors (51120429836) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Impact guard strips, side assembly?
- Each item in the Impact guard strips, side corresponds to the numbered list below the illustration. For the 1 Series E88 118i, you can identify the Moulding rocker panels, doors by locating its position on the schematic, which then links to the official BMW part number 51120429836 for the Retrofitting / conversion / accessories section.
