Moulding rocker panels for BMW 5 Series E60 530xi (2007)

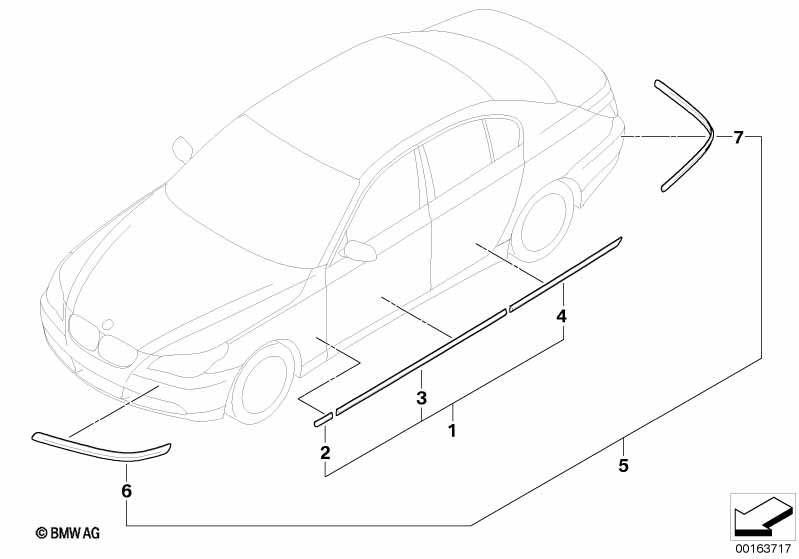

This Moulding rocker panels technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. |
|||||||||
| 01 | Moulding rocker panels, doors | 1 | 51190412592 | $290.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Impact strip, side panel, front right | 1 | 51120412586 | $33.25 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Impact strip, side panel, front left | 1 | 51120412587 | $33.25 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Impact strip, door, front right | 1 | 51120412588 | $66.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Impact strip, door, front left | 1 | 51120412589 | $66.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Moulding door rear right | 1 | 51120412590 | $51.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Moulding door rear left | 1 | 51120412591 | $51.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=Yes S715A=No |
|||||||||
| 05 | Moulding rocker panels - bumper PDC | 1 | 51190412602 | $339.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=No S715A=No |
|||||||||
| 05 | Impact strip for bumper | 1 | 51190412601 | $230.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=Yes S715A=No |
|||||||||
| 06 | Impact strip, front left PDC | 1 | 51120412595 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Impact strip, front right PDC | 1 | 51120412596 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=No S715A=No |
|||||||||
| 06 | Moulding rocker panel front left | 1 | 51120412593 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Moulding rocker panel front right | 1 | 51120412594 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=Yes S715A=No |
|||||||||
| 07 | Impact strip, rear left PDC | 1 | 51120412599 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Impact strip, rear right PDC | 1 | 51120412600 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=No S715A=No |
|||||||||
| 07 | Moulding rocker panel rear left | 1 | 51120412597 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Moulding rocker panel rear right | 1 | 51120412598 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
